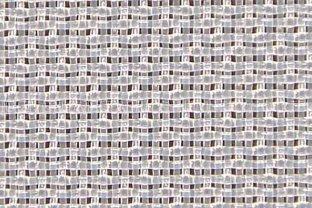

4-shed single layer forming mesh
Specifications
- Origin
- China
- Price Term
- FOB
4-shed single layer forming mesh is a Metallic Minerals product. Key specs — Origin: China; Price Term: FOB.
Product Description
According to the weaving, polyester forming fabric can be divided into 4-shed single layer fabrics, 5-shed single layer fabrics, 8-shed single layer fabrics, 7-shed double layer fabrics, 8-shed double layer fabrics, 8-shed double and a half layer fabrics, 16-shed double and a half layer fabrics.
4-shed single layer fabrics is used in making culture paper, printing paper and packing paper.
5-shed single layer fabrics is used in making printed toilet paper, culture paper and packing paper.
8-shed single layer fabrics is mainly used to making bag paperã€kraft paperã€sheet lined board , corrugated paper and cardboard paper etc.
7-shed double layer fabrics is suitable for making quality printing paper and tissue paper etc.
8-shed double layer fabrics is suitable for making quality printing paper, offset paper, tissue paper and the surface pulp and inner pulp of the board paper etc.
8-shedã€16-shed double and a half layer fabrics is suitable for various papers of the high speed paper machine.
Model of fabrics | wire diameter mm | Density(thread/cm) | Strength（N/cm) | Thickness | Air permeability | Max. Elongation | |||||
Warp | Weft | Warp | Weft | Surface | jointing | ||||||
4-shed single layer | 27254 | 0.20 | 0.25 | 30 | 22 | ≥600 | ≥400 | 0.49 | 8000 | 0.60% | |
27254-1 | 0.20 | 0.25 | 30 | 23 | ≥600 | ≥400 | 0.495 | 7500 | 0.60% | ||
27254-2 | 0.20 | 0.25 | 30 | 24 | ≥600 | ≥400 | 0.50 | 7000 | 0.60% | ||
27274 | 0.20 | 0.27 | 30 | 21.5 | ≥600 | ≥400 | 0.51 | 7800 | 0.60% | ||
27274-1 | 0.20 | 0.27 | 30 | 22.5 | ≥600 | ≥380 | 0.515 | 7300 | 0.60% | ||
31204 | 0.18 | 0.20 | 35 | 28 | ≥600 | ≥380 | 0.43 | 7500 | 0.68% | ||
31204-1 | 0.18 | ||||||||||
