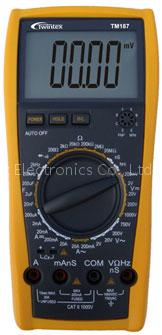

4 1/2 Digits Digital Multimeter TM187

Features
- New type holster, streamline design
- Large LCD makes reading easy and clear
- Strong anti-magnetic and anti-jamming performance
- Auto off within 30 minutes
- Full protection function, anti high voltage circuit design (voltage dependent resistor 1300V)
- Unit and function symbols display
- Capacitance test range up to 200uF

Specifications
Basic functions:
DCV: range 200mV/2V/20V/200V/1000V, accuracy ±(1.0%+3)
ACV: range 2V/20V/200V/750V, accuracy ±(0.8%+25)
DCA: range 200uA/2mA/20mA/200mA/20A, accuracy ±(0.5%+4)
ACA: range 200mA/20A, accuracy ±(1.5%+25)
Resistance: range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, accuracy ±(0.4%+5)
Conductance: range (0.1~100)nS, accuracy ±(1.0%+30)
Capacitance: range 20nF/2uF/200uF, accuracy ±(2.0%+20)
Frequency: range 2kHz/200kHz, accuracy ±(3.0%+15)

Special functions:
Diode test : YES
hFE test: YES
Continuity alarm: Less than 30Ω±10Ω
Low batter indication: Less than 7.5V
Data hold : YES
Auto off: 30 minutes
Backlight: Approx.10Sec.
Function protection: YES
Anti-shock protection: YES
Input impedance: 10MΩ
Sampling rage: 3 times/Sec.
AC frequency response: 40-400Hz
Operation mode: Manual range
Max. display: 19999
LCD size: 65x41mm
Power: 9V(6F22)
Power dissipation: Quiescent current: approx.3mA
Size: 185x93x35mm
Net weight: 290g(including battery)
