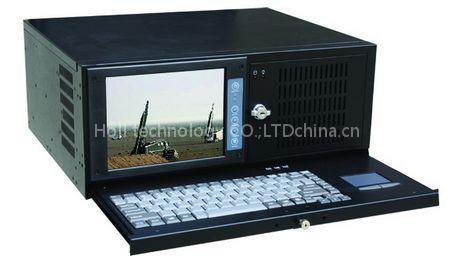

4U rackmount workstation IEC-808E

Features: Compact 4U high Rack Mount workstation Front 8" TFT LCD display and built-in slim keyboard and Touchpad drawer Shock-resistant Driver Bay to hold Two 5.25" CD-ROM,One 3.5" FDD(External)and one 3.5" HDD(Internal) Flexible mechanical design supports STD PS2 or Redundant power supply Two USB Accessible from the front door Support 14-slot Backplane or ATX MB foam factor( 9.6" x 12" ) Power status indicator by front viewable LED indicator Specification:Disk Driver Bay : 5.25" x2 , 3.5" x1 (External), 3.5" x1 (Internal).

Cooling Fan: 2 x (92x92x 25mm ) hot swap cooling fan with air filter I/O interface:2 x USB Accessible from the front door Support OSD function (front panel) Keyboard:built-in 88-keys ( US ) keyboard and touch pad.

Display: LCD designed modular can be front Accessible while maintenance 8' LCD PANELDisplay Type : 8" TFT LCDResolution : 800 x 600 (1024*768)Luminance : 250 cd/m2Contrast Ratio : 300 : 1Response Time : 80msPower Consumption : 4 WLCD MTBF : 10,000hrs Dimension: (W x H x D):430 x 177 x 450mm Paint Color: black Touch screen:resistive (optional) Touchscreen(optional):Type: Analog resistive type : 25VDC ≥ 20M Ω Resolution: continuous Light transmission: 81% or more Controller: RS-232 interface( or USB option) Power consumption:
