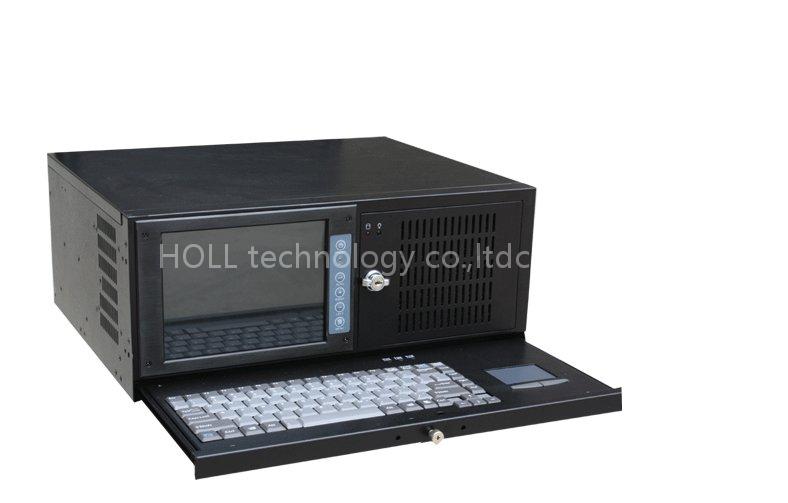

4U Rackmount 8" LCD Workstation IEC-808S

4U Rack Mount 8" TFT LCD workstation Front Accessible KB/Touch pad drawer
Modularization design,easy disassemble
Cooling fan or fanless design
With 10slot blackplane or motherboard
With 3Pin connector and DC-12V internal ATX power module

Features:

Compact 4U high Rack Mount workstation
Front 8" TFT LCD display and built-in slim keyboard and Touchpad drawer
Shock-resistant Driver Bay to hold Two 5.25" CD-ROM,One 3.5" FDD(External)and one 3.5" HDD(Internal)
Flexible mechanical design supports STD PS2 or Redundant power supply
Two USB Accessible from the front door
Support 10slot Backplane or ATX MB foam factor( 9.6" x 12" )
Power status indicator by front viewable LED indicator
Specification:

Disk Driver Bay : 5.25" x2 , 3.5" x1 (External), 3.5" x1 (Internal).
Cooling Fan: 2 x (92x92x 25mm ) hot swap cooling fan with air filter
I/O interface:2 x USB Accessible from the front door
Support OSD function (front panel)
Keyboard:built-in 88-keys ( US ) keyboard and touch pad.
Display: LCD designed modular can be front Accessible while maintenance
8' LCD PANEL

Display Type : 8" TFT LCD
Resolution : 800 x 600 (1024*768)
Luminance : 250 cd/m2
Contrast Ratio : 300 : 1
Response Time : 80ms
Power Consumption : 4 W
LCD MTBF : 10,000hrs

Dimension: (W x H x D):430 x 177 x 30mm
Net weight:11kg
Paint Color: black
Touch screen:resistive (optional)
Touchscreen(optional):

Type: Analog resistive type : 25VDC ≥ 20M Ω
Resolution: continuous
Light transmission: 81% or more
Controller: RS-232 interface( or USB option)
Power consumption:<5V
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 1 Million
Backplane:

10slot Backplane

Motherboard:

Half size SBC/ITX/M-ATX/ATX board

Power Supply:

DC12V, Internal ATX power module / 3pin connector

Ordering Information:

IEC-808SB 4U 19' Rackmount workstation w/ 8" TFT LCD, for backpanle rear panel
IEC-808SBT 4U 19' Rackmount workstationw/ 8" TFT LCD, w/Touch screen, for Backpanle rear panel
IEC-808SM 4U 19' Rackmount workstationw/ 8" TFT LCD, for motherboard rear panel
IEC-808SMT 4U 19' Rackmount workstationw/ 8" TFT LCC, w/Touch screen, for motherboard rear panel

Exporting packing: With 3pin power cable*1+warranty card*1+screws*1 bag+VGA cable*1
