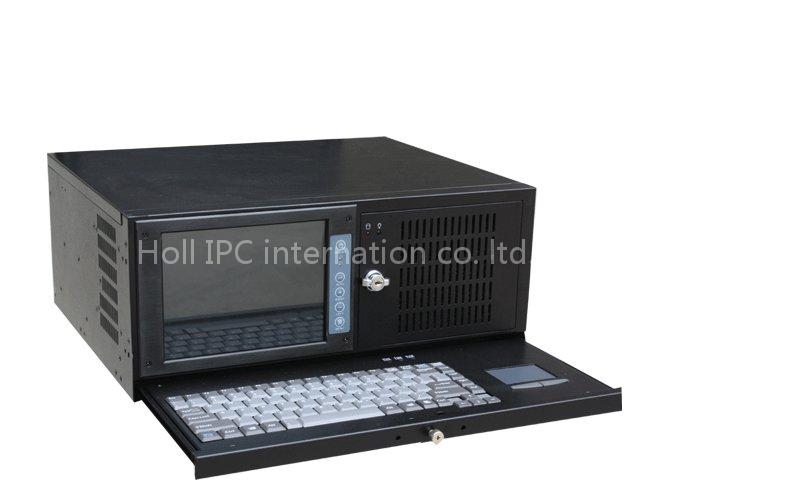

4U Rack Mount 8

We offer: 1.4U RackMount 8" TFT LCD workstation 2.8U RackMount 15" TFT LCD Workstation 3.8U RackMount 17" TFT LCD Workstation 4.Industrial portable workstation with 15" TFT LCD display (1024*768) Product Description 4U Rack Mount 8" TFT LCD workstation Model NO.: IEC-808E Product Feature 1.Compact 4U high Rack Mount workstation 2.Front 8" TFT LCD display and built-in slim keyboard and Touchpad drawer 3.Shock-resistant Driver Bay to hold Two 5.25" CD-ROM,One 3.5" FDD(External)and one 3.5" HDD(Internal) 4.Flexible mechanical design supports STD PS2 or Redundant power supply USB Accessible from the front door 6.Support 14-slot Backplane or ATX MB foam factor( 9.6" x 12" ) 7.Power status indicator by front viewable LED indicator Product Specification/Models Driver Bay : 5.25" x2 , 3.5" x1 (External), 3.5" x1 (Internal).

2.Cooling Fan: 2 x (92x92x 25mm ) hot swap cooling fan with air filter 3.I/O interface:2 x USB Accessible from the front door 4.Support OSD function (front panel) 5.Keyboard:built-in 88-keys ( US ) keyboard and touch pad. 6.Display: LCD designed modular can be front Accessible while maintenance 7.

8" LCD PANEL 1024*768 Resolution Luminance:250 cd/m2 Contrast Ratio:300 : 1 Response Time : 80ms Power Consumption : 4 W LCD MTBF : 10,000hrs 8.Touchscreen(optional): Type: Analog resistive type : 25VDC ≥ 20M Ω Resolution: continuous Light transmission: 81% or more Controller: RS-232 interface( or USB option) Power consumption:<5V /1mA Surface hardness : 3H Operating force : ≤100g Life expectancy : 1 Million 9.

Support 14-slot Backplane or Full size SBC/ITX/M-ATX/ATX motherboard 10.Matching Standard ATX Powersupply 11.Dimension: (W x H x D):430 x 177 x 450mm
