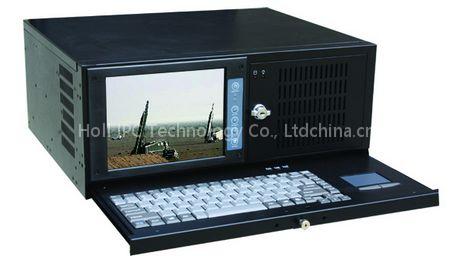

4U 8 inch rackmount workstation

Product Feature
1.Compact 4U high Rack Mount workstation
2.Front 8" TFT LCD display and built-in slim keyboard and Touchpad drawer
3.Shock-resistant Driver Bay to hold Two 5.25" CD-ROM,One 3.5" FDD(External)and one 3.5" HDD(Internal)
4.Flexible mechanical design supports STD PS2 or Redundant power supply
USB Accessible from the front door
6.Support 14-slot Backplane or ATX MB foam factor( 9.6" x 12" )
7.Power status indicator by front viewable LED indicator

Product Specification/Models
Driver Bay : 5.25" x2 , 3.5" x1 (External), 3.5" x1 (Internal).
2.Cooling Fan: 2 x (92x92x 25mm ) hot swap cooling fan with air filter
3.I/O interface:2 x USB Accessible from the front door
4.Support OSD function (front panel)
5.Keyboard:built-in 88-keys ( US ) keyboard and touch pad.
6.Display: LCD designed modular can be front Accessible while maintenance
7. 8" LCD PANEL
1024*768 Resolution
Luminance:250 cd/m2
Contrast Ratio:300 : 1
Response Time : 80ms
Power Consumption : 4 W
LCD MTBF : 10,000hrs
8.Touchscreen(optional):
Type: Analog resistive type : 25VDC ≥ 20M Ω
Resolution: continuous
Light transmission: 81% or more
Controller: RS-232 interface( or USB option)
Power consumption:<5V /1mA
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 1 Million
9. Support 14-slot Backplane or Full size SBC/ITX/M-ATX/ATX motherboard
10.Matching Standard ATX Powersupply
11.Dimension: (W x H x D):430 x 177 x 450mm
