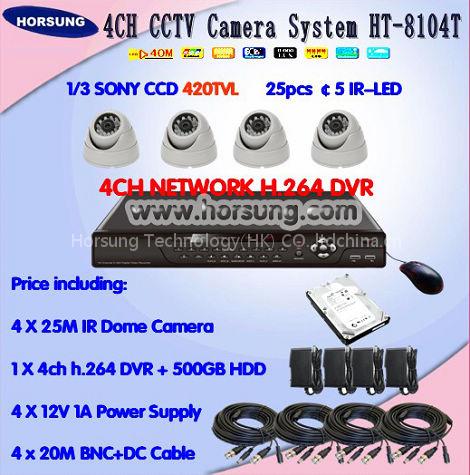

4CH CCTV Security & Surveillance Systems HT-8104T

HT-8104T

Camera:

1,Image Device: 1/3" Sony CCD 420TVL 2,with 24PCS LED Dia5 3,Lens:Built-in 3.6 mm Board Lens 4,IR distance:20-25M5,Horizontal Resolution: 420TV Lines 5,Lens Mount: C/CS Mount (C Mount Adaptor option) 6,Auto Iris Lens: Video/DC 7,TV System: PAL/NTSC 8,Electronic Shutter Speed: 1/50 (1/60)-1/100,000(Sec) 9,S/N Ratio: More than 48db(AGC Off) 10,Minimum Illumination: 0Lux 11,White Balance: Auto Tracking White Balance 12,Electronic Shutter Control: EE/AI Switchable 13,Mirror Function: ON/OFF Switchable 14,Video Out: 1.0Vp-p, 75 Ω BNC19,Power: DC12V

DVR:

1,Display resolution:D1:720x576(PAL)/D1:720x480(NTSC) 2,Record/network resolution:CIF:352X288(PAL)/CIF:352x240(NTSC) 3,Display frame rate:4x25FPS(PAL),4x30FPS(NTSC) 4,Record frame rate:CIF:100FPS(PAL)/CIF:120FPS(NTSC) 5,High speed USB2.0 for mouse,backup and upgrade 6,Remote controller,Support external DVD-RW 7,Top advanced arithmetic:H.264 video compression 8,4 CH playback simultaneously.4ch audio and video synchronization.

9,Remote monitoring through IE,Mobile or free CMS software,CMS for 256 CH management. 10,2 USB Interface.External HDD and DVD-RW supported. 11,Lightning protection up to >6000V to ensure higher stability. 12,Simple panel,economical and practical,Streamline structure of the hardware design.

13,House,villas,stores,offices and other small-scale video surveillance occasions. 14,Hard disk Support One 1 Terabyte HDD and external HDD 15,Power supply:Lower than 6W(without HDD) / 12V4A

Accessories:

500GB HDD 20M*4PCS BNC DC Cable 4pcs Power supply 12V1A
