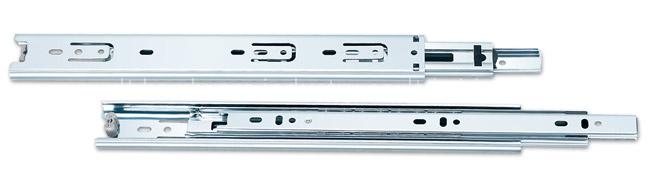

45mm ball bearing slides

1. Width: 45mm
2. Thickness: 0.8mm; 1.0*1.0*1.2
3. Material: Cold-rolled steel plate
4. Recommended application: Mid-duty movable cabinet, desk drawer, ordinary furniture or any applications requiring 28kg load or less and requiring full extension.
5. Products features: Fine adjustment of gap is possible when installing, quick separation mechanism, vibration prevention ball strip for absorbing impulsive force, and mechanism to prevent drawer from spring out.
6. Surface working: Blue zinc-plated, color zinc-lated, black electrophoresis-plated.

Installation method: Side installation. 12+-0.2mm
If you need more informations, please feel free to contact us.

More Product Features


Trademark: Kaishili
Model NO.: BB-3508
Standard: ISO9001: 2008
Productivity: 1600000Sets/Month
Origin: China
Packing: 20 Pairs/CTN
Min. Order: 2000 Pairs
Transportation: Packed in 20'/40'/40hq Container by Vessel
Type: Ball Bearing
Material: Metal
Usage: Drawer
Main Size: 10''~24''
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

the Full Extension Drawer Slides of the 3508 series and the 3512 series.
The products Description
H45mm full extension side-mounted
Size :12"-48"
Thickness of material:1.0mmx1.0mmx1.2mm, 1.2mmx1.2mmx1.5mm.
Load rating:45kg/450mm(18")
