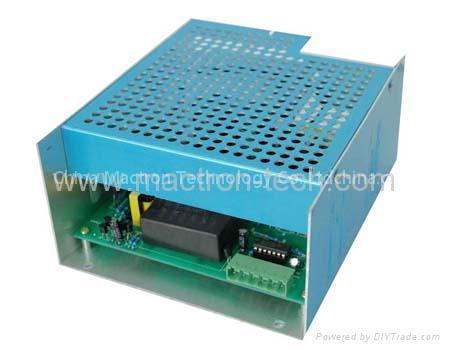

40W Laser Tube Power Supply
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
40W Laser Tube Power Supply is a Other Laser Equipment product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
Power Supply for 40W and 30W CO2 Laser Tube
The Main Features
1) Good compatibility: It can be applicable to 40W and 30W laser tube.
2) Fast response speed and effect.
3) Dramatically lengthen the life of laser.
4) Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
5) Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power.
6) The power supply has open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
7) The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.
8) The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.
9) Application: acrylic sculpture, cut; fabric sculpture, cut; rubber sheet sculpture, cut, etc.
Specification
Input | Input Voltage | AC220V or AC110V (to be specified when placing order) | |
AC frequency | 47—440HZ | ||
Cold Surge Current | ≤60A (AC220V Input) | ≤30A (AC110 Input) | |
Current Leakage | ≤0.7mA (AC220V Input) | ≤0.4mA (AC110V Input) | |
Output | Maximum Input Voltage | DC 25KV | |
Maximum Output Current | DC 20mA | ||
Efficiency | ≥90 Percent (full load) | ||
Mean Time Between Failure (MTBF) | ≥10000H | ||
Response Speed | ≤1ms (from the switch Signal is given to the output current up to 90% of the setting current) | ||
Control Interface | TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) | ||
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10mA 60S; Output negative is connected with machine shell. | ||
Protection | can work in open-circuit condition for a short time (Require a good protective earthing and avoid arc between the positive and the machine shell) | ||
Environment | Operating Temperature: -10~40°C, Relative Humidity (RH)≤90Percent | ||
Cooling Way | Force-Air Cooling (FAC) | ||
Dimension | L×W×H=167*144*97(mm) | ||
