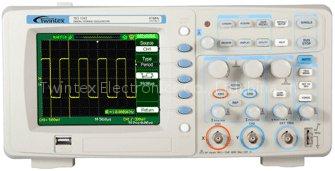

40MHz~200MHz Digital Storage Oscilloscope

- 40MHz/60MHz/100MHz/150MHz/200MHz bandwidth

- Sampling rate up to 1Gsa/s & 500Msa/s, memory depth up to 2Mpts

- Advanced triggering: edge, pulse, video, slope, alternative

- 32 parameters auto measuring

- Save/Recall available with setups, waveforms, CSV file, pictures

- Auto setup, Run/Stop control, Menu ON/OFF button

- Unique digital filter and waveform recording function

- Multi-lingual user interface with 12 languages and context sentitive help

- 4 math functoins plus FFT

- Large internal waveform and setup storage

- Front panel print button for easy saving or printing screen shots

- Screen-saver function (1 min. to 5 hours)

- USB and RS-232 ports for direct PC remote control from, the USB port also allows for connections to printers and memory sticks

SPECIAL FEATURES:

32 measuring types

Measures 32 parameters automatically. Parameters can be selected one by one and display simultaneously.

Reference waveform

Saves two sets of reference waveform and displays them simultaneously to make comparison.

FFT split display

Analyze signal in frequency area, channel waveform and FFT display simultaneously in one screen, giving direct waveform observation.

Waveform save/recall

A built-in waveform recorder facilitates seamless real-time recording of waveform. The saved waveforms can be recalled to playback.

Pass/Fail Test

Thebuilt-in Pass/Fail testing provides signal mode for production testing, possess output OFF function, and improves testing efficiency.

Digital filter ON/OFF

Digital filtering is available on each channel and can be turned on or off. The Low-Pass, High-Pass, Band-Pass and Band-Stop filters allow you to isolate only the frequencies you want to see.

Auto measuring

The system will adjust cursor position automatically according to changes of selected auto-measuring parameter and caculate corresponding parameter values.

Independent channel control

Simple operation for independent channel control; backlit button design, clear and easy for measuring.

Delay scanning

Applies dual time base EasyZoom technology, giving perfectdisplay for partial and complete waveforms.

Adjustable waveform intensity

Waveform instensity can be adjusted to give easy view of waveforms.

Pop-up menu

With pop-up menu, the menu canbe hidden at any time to make full-screen display, making more convenient waveform observastion.

Context sensitive help

One-key onlie help system facilitate simple and easy learning and application of the unit. Press any button or turn any knob in help mode, a pop-up window displays the functonality of that control.

SPECIFICATIONS:
Models and Max.bandwidth
TSO 1042: 40MHz
TSO 1062: 60MHz
TSO 1102: 100MHz
TSO 1152: 150MHz
TSO 1202: 200MHz

Channels: 2 channels + 1 external triggering channel
Real time sampling rate: Single channel: 500Msa/s; Dual channel: 250Msa/S (for TSO 1042, TSO 1202)
Single channel: 1Gsa/s; 500Msa/s (for TSO 1062, TSO 1102, TSO 1152)
Equivalent sampling rate: 25Gsa/s (for TSO 1042, TSO 1202); 50Gsa/s
Memoery depth: 32K/CH (for TSO 1042, TSO 1202); 2Mpts (for TSO 1062, TSO 1102, TSO 1152)
Rise time: <8.8ns (for TSO 1042); <5.8ns (for TSO 1062); <3.5ns (TSO 1102); <2.3ns (for TSO 1152); <1.7ns (for TSO 1202)
Input imdedance: 1MΩ‖17pF
Time base: 10ns/div-50s/div (for TSO 1042); 5ns/div-50s/div (for TSO 1062); 2.5ns/div-50s/div (for TSO 1102, TSO 1152, TSO 1202);
Roll: 100ms-50s/div
Vertical sensitivity: 2mv-10v/div (1-2-5 sequence)
Vertical resolution: 8 bit
Trigger source: CH1, CH2, EXT, EXT/5, AC line
Trigger mode: Edge: Rising, Falling, Rising and Falling
Pulse: Positive pulse width, negative pulse width
Video: Support signal formats: PAL/SECAM, NTSC
Slope: Positive Slope, Negative Slope
Alternative: CH1: Edge, Pulse,Video, Slope / CH2: Edge, Pulse,Video, Slope
Math operation: +, -, *, FFT (window mode: Hanning, Hamming, Blackman, Rectangular
Sampling point: 1024
Digital filter: High-pass, low-pass, band-pass, band-stop
Max. input voltage: ±400V peak-to-peak, CAT 1
Auto set: Auto adjusting the vertical, horizontal system and trigger position
Auto measuring: Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Crms, Vrms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Rise time, Fall time, Freq, Period, +Wid, -Wid, +Dut, -Dut, Bwid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Internal memory: Support 2 sets reference waveroms, 20 sets setups, 20 sets captured waveforms storage/recall function
External memory: Support bitmap save, CSV save, waveform save, setting save USB flash driver storage
Point, vector: OFF, 1 sec., 2 sec., 5 sec., Infinite
Language: English, French, German, Russian, Spanish, Portuguese, Japanese, Korean, Italian, Arabic, Simplified Chinese, Traditional Chinese
Interface: USB Host, USB Device, RS-232, Pass/Fail output
Display: 5.7 inches TFT LCD
Safety: EMC: EN61326; LVD: EN61010-1
Power source: AC100-240V, 47-440Hz, 50VA Max.
Dimension (L*W*H): 305*133*154mm
Weight: 2.3KG
