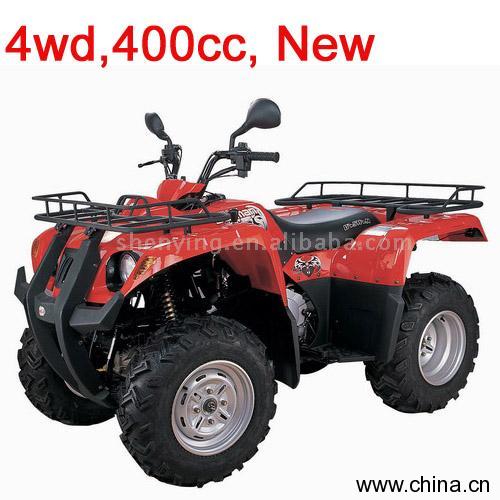

400cc ATV is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:SY-ATV400 Product Origin:China Brand Name: Price Terms: Payment Terms:T/T, L/C Certification: Description:Engine type: 400cc, air cooled, single cylinder, 4 strokeDriving mode: 4WDIgnition mode: CDI Compression proportion: 8.7: 1 Start mode: electric / electric manual Fuel tank capacity: 14LTransmission mode: axisPower: 6kW/6,500r/minMax. torque: 26N.m/5,000r/minMin. ground clearance: 210mm Max. speed:>75km/h Power source: 12V, 20Ah Transmission: 5 gears with one reverse gear, one neutral-gear, automatic clutchCylinder size: 83 x 71.6Engine oil: 2.9L Gear oil: front tank: 0.4, rear tank 0.25Lubrication: press splash Displacement: 387.4mL Parking trig: mechanical lock Gas cylinder number: 1 Front wheels: 25 x 8-12Rear wheels: 25 x 10-12Break type (F/R): disc / drum Front hanging: double arm-swing Product dimensions: 2,100 x 1,125 x 1,175mm Carton dimensions: 2,150 x 1,160 x 880mm Wheelbase: 1,240mmHeight of seats: 860mm Dry weight: 330kg Load capacity: 220kg Climbing degree:>22"Min. turning radius: 2,900mm Max. number of riders: 2Color: red/yellow/blue/green/camouflageConveyance: Qty/20 GP: 10 unitsQty/40 GP: 22 unitsQty/40 HQ: 33 units
