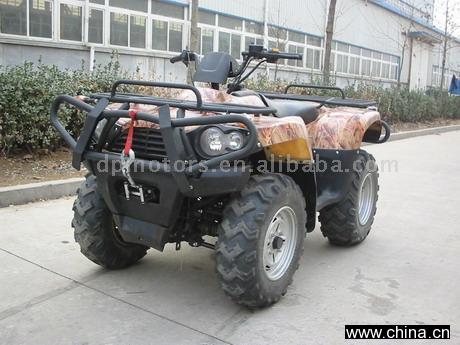

400cc 4x4 atv is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:AP-ATV22 Product
Origin:China Brand
Name:
Price Terms:
Payment Terms:
Certification: Description:Overall
Dimension: Lx WxH: 2070mmx1150mmx1175mm Ground clearance: 200mm Max
Speed :60km/h Climbing Ability:35 degree Specification of Front wheel:25/8-12(38F)Specification of Rear wheel:25/10-12(45F)Distance between front wheel:860mm Distance between rear wheel:860mm Distance between front and rear wheel:600mm Seat height:900mm Distance between front axle and rear axle:1235mm Gross weight:350kg Dry weight:300kgsystem front/rear Brake:Disk/Disk Engine:One Cylinder/Four Stroke Cylinder dia..*Working stroke:71mm*71mm Efficient
Capacity:367ml Rated Power and Rotate
Speed:17.2KW/7600r/min Max Torque and Rotate
Speed:26N.m/6000r/min Compressing Ratio:2.444-0.829Gearshift Mode:CVT/Reverse Transmission:4 drive/Shaft drive , manual front drive Starting System:Electric Cooling System:Water- Cooling Fuel tank:13 litre Loading :12/20 36/40HPacking measure:1950*1160*860
