Listing ID#10194166
Model03ST063R
CategoryConsumer Electronics

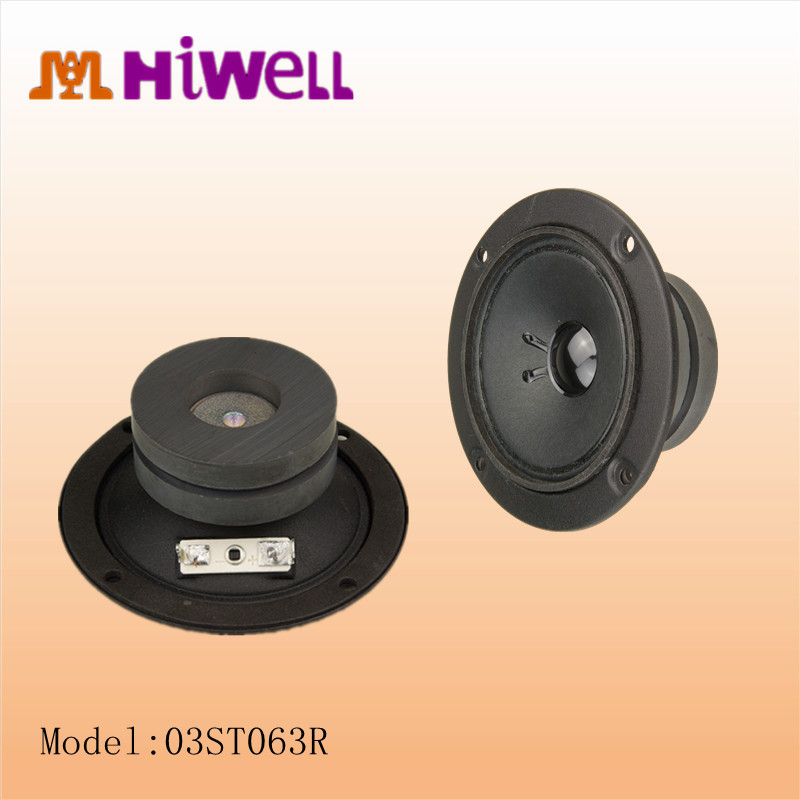

3 inch Tweeter Karaoke Speaker
Specifications
- Brand
- Hiwell
- Origin
- Guangdong, China (Mainland)
- Price Term
- FOB
Quick answer
3 inch Tweeter Karaoke Speaker is a Consumer Electronics product. Key specs — Brand: Hiwell; Origin: Guangdong, China (Mainland); Price Term: FOB.
Product Description
1.Tweeter Karaoke Speaker in 3"
2.Speaker is ideal for Karaoke application
performance of this spaker
4.Speaker give you a special voice
5.Speaker make you enjoying the music
6.Other sizes speaker are available upon your requests
7.Speaker dails:
| Specifications | |
| Nominal Diameter | 98 mm |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4.2 Ω |
| Power handling | |
| (50-500Hz) | |
| Nominall | 12 W |
| Continuous Program | 24 W |
| Sensitivity (1W/1m)3 | 94 dB |
| Frequency Range | 1150-18000 Hz |
| Voice Coil Diameter | 14.28 mm |
| Winding Material | Copper |
| Former Marerial | PSV |
| Winding Depth | 2.8 mm |
| Magnetic Gap Depth | 3.0 mm |
| Flux density | 1.4 T |
| Recommended Crossover5 | 18 kHz |
| Thiele-Small parameters4 | |
| Re | 3.6 Ω |
| X max | 0.5 mm |
| X var | 0.6 mm |
| Le | 0.1 mH |
| Mounting and Shipping Information | |
| Blot Circle Diameter | 88 mm |
| Overall Diameter | 98 mm |
| Baffie Cutout Diameter | 78 mm |
| Depth | 43 mm |
| Flang and Gasket Tickness | 0.8 mm |
| Net Weight | 0.3 kg |
| Shipping Weight | 0.35 kg |
| Shipping BOX | 570*34.5*21.5 mm |
