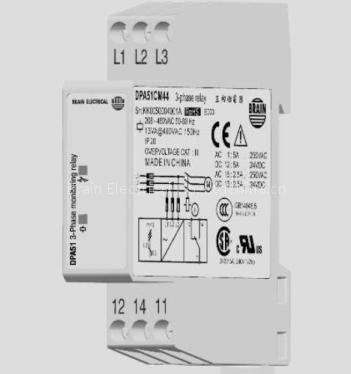

3-Phase Monitoring Relay (DPA51CM44)

3-Phase relay for detection ofincorrect phase sequence, total and partial phase loss. Supply range from 208 to 480VAC. For mounting on DIN-rail. Housing 17.5 mm wide, SPDT relay output, suitablefor back and front panelmounting. The devicedetects regeneratedvoltageup to 85% of the nominalvoltage (phase-phase).

3-phase monitoring relay for phase sequence and phase loss Detects when all phases are present and have the correct sequence Measures its own power supply Power supply range: 208 to 480 VAC (± 15%) Output: 5 A SPDT relay normally energized For mounting on DIN-rail in accordance with DIN/EN 50 022 17.5 mm DIN-rail housing (DIN 43880) LED indication for relay and power supply on.
