Listing ID#10136774
ModelXL3600V
CategoryAuto Meter
Quick answer
3 1/2 mini digital voltmeter is a Auto Meter product. Key specs — Origin: China (Mainland).
Product Description

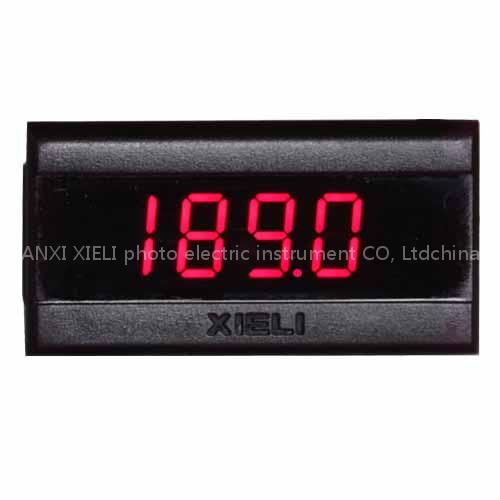

Name:XL3600 series Super-mini Digital Dispaly Meter
Digit display：3½（1999）
Operating temperature：0~40℃(RH 20%~80%）
Dimension：W50mm×H26mm×D23.5mm
Tapping size：（46+0.5）×（23+0.5）
Install method: Inlay
Power Supply：DC5V
| Model | Digit display | Full measurement | Resolution | Accuracy | Input impedance | Max.input value | Power Supply |
| XL3600V-1 | 3½ | ±199.9mV | 0.1Mv | ±0.3 % +1Digit | 100MΩ | ±10V | DC 5V |
| XL3600V-2 | 3½ | ±1.999V | 1Mv | ±0.3 % +1Digit | 100MΩ | ±35V | DC5V |
| XL3600V-3 | 3½ | ±19.99V | 10Mv | ±0.3 % +1Digit | 1MΩ | ±200V | DC5 |
| XL3600V-4 | 3½ | ±199.9V | 100Mv | ±0.5 % +1Digit | 1MΩ | ±300V | DC5V |
