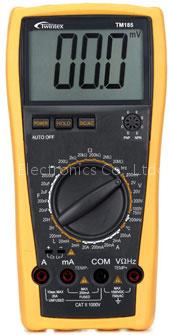

3 1/2 Digits Digital Multimeter TM185

Features
- New type holster, streamline design
- Large LCD makes reading easy and clear
- Strong anti-magnetic and anti-jamming performance
- Auto off within 30 minutes
- Full protection function, anti high voltage circuit design (voltage dependent resistor 1300V)
- Unit and function symbols display
- Capacitance test range up to 2000uF
- Frequency auto ranging, selfdischarge when capacitance measuring

Specifications
Basic functions:
DCV: range 200mV/2V/20V/200V/1000V, accuracy ± (0.5%+3)
ACV: range 200mV/2V/20V/200V/750V, accuracy ± (1.0%+5)
DCA: range 200uA/2mA/20mA/200mA/20A, accuracy ± (0.8%+3)
ACA: range 200uA/2mA/20mA/200mA/20A, accuracy ± (1.0%+5)
Resistance: range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, accuracy ±(0.8%+4)
Inductance: range 2mH/20mH/200mH/2H/20H, accuracy ± (2.5%+20)
Capacitance: range 20nF/200nF/2uF/20uF/2000uF, accuracy ± (3.0%+10)
Frequency: range 200kHz, accuracy ± (3.0%+15)
Temperature: range -40℃~1000℃, accuracy ±(1.0%+5)

Special functions:
Diode test : YES
hFE test: YES
Continuity alarm: Less than 30Ω±10Ω
Low battery indication: Less than 7.5V
Data hold : YES
Auto off: 30 minutes
Function protection: YES
Anti-shock protection: YES
Input impedance: 10MΩ
Sampling rage: 3 times/Sec.
AC frequency response: 40~400Hz
Operation mode: Manual range (Frequency: auto range)
Max. display: 1999
LCD size: 65x41mm
Power: 9V(6F22)
Power dissipation: Quiescent current: approx.6mA
Size: 185x93x35mm
Net weigh: 290g (including battery)
