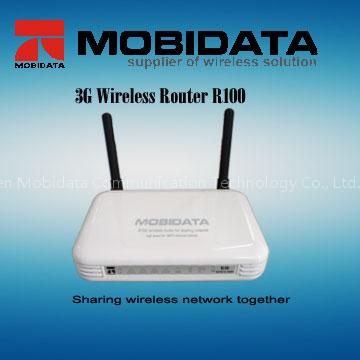

3G wireless router
Specifications
- Brand
- MOBIDATA
- Origin
- shenzhen
- Price Term
- FOB
3G wireless router is a Telecommunications product. Key specs — Brand: MOBIDATA; Origin: shenzhen; Price Term: FOB.
Product Description
Hardware specification Internal module Supported External USB modem Supported Input Voltage Range AC 110-240V Output Voltage Range DC 12V 1.5A Operating Temp. -0~+40degC Storage Temp. -40~+70degC Operating Humidity 10% - 95% (non condensing) Storage Humidity 5% - 90% (non condensing) Antenna Undetectable revolving Omni-directional antenna WIFI frequency range 2.4GHz 3G frequency range WCDMA(850,1900,2100MHz), IEEE 802.11 Standards Supported IEEE802.11b;IEEE802.11g;IEEE802.11n Transmission Power 802.11b : 802.11g :15dBm 54Mbps 802.11n : EVM -30dB Re.
Sensitivity 802.11b :11M: 1M: 802.11g :54M: 6M: 802.11n :135M: PER 108M: PER WIFI transmission 802.11b :11,5.5, 2, 1 Mbps 802.11g :54, 48, 36,24,18,12, 9, 6 Mbps 802.11n :144, 130, 115, 86, 57, 43, 28, 14 Mbps Frequency range WIFI: 2.4GHz-2.5GHz WCDMA(850,1900,2100MHz), Gain of antenna 3G: 3dBi 3G: 3.5dBi Nominal Impedance 50Ω Polarization extended vertical linear Antenna interface IPEX-MHF Vertical Beam-width 360º
