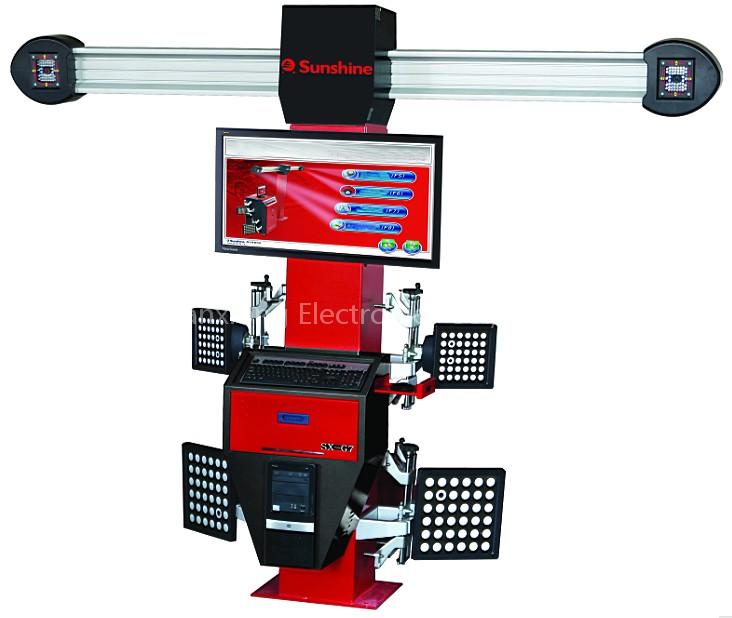

Name: 3D wheel aligner SX-G7
Brand: Sunshine
SKU: SX-G7

3D wheel aligner

Model:SX-G7

Characteristics of 3D Wheel Alignment

1.3D cameras alignment—Based on the car and not influenced by the platform

2.Measurement system—equipped with double digital cameras and four target disk, supplyingrevolutionary measurement mode

3.Target disk—There is no electronic components, so the wheel alignment will not has a component failure problem.

4.Equipment Calibration - once calibration before delivery, workable immediately after installation, no need for periodic calibration

5.Measurement progress—no need to compensate for steel ring , the precise eccentric compensation will be just once pulling or pushing the car back and forth

6.Software system——Easy to operate, complete conventional basic parameters within two minutes ,significantly faster than conventional aligners

7.Daily Maintenance—Easily maintenance , download and upgrade freely for the model data

Technical Specification:

Measurement project	Accuracy	Measurement range	Measurement project
Display accuracy	1´/1mm		Display accuracy
Camber	±2´	±10°	Camber
Caster	±6´	±20°	Caster
Kingpin Inclination	±6´	±20°	Kingpin Inclination
Toe-in & Toe-out	±2´	±20°	Toe-in & Toe-out
Set back	±2´	±5°	Set back
Thrust angle	±2´	±5°	Thrust angle
Wheel Deviation	±2mm		Wheel Deviation
Axis Deviation	±2mm		Axis Deviation
Measurement project	Accuracy	Measurement range	Measurement project
