3D laser engraving machine for leather
Specifications
- Brand
- Goldenlaser
- Origin
- China
- Price Term
- FOB
3D laser engraving machine for leather is a Other Laser Equipment product. Key specs — Brand: Goldenlaser; Origin: China; Price Term: FOB.
Product Description

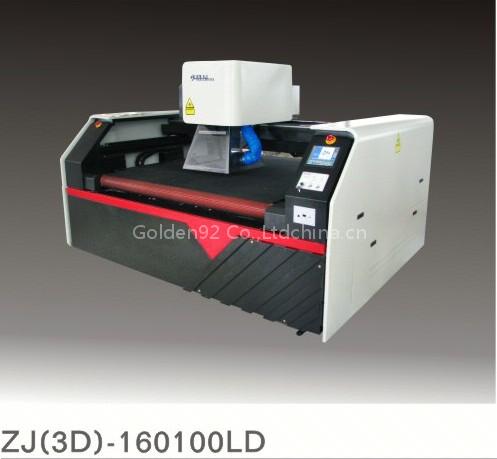

ZJ(3D)-160100 LD engraving and cutting machine for leather
Contact Information
Product Feature It adopts world-advanced 3D ddynamic working system,can not only do personalized engraving,punching and cutting on various textile fabrics,leather materials and synthetic materials ,but also can do roll-roll or roll to piece engraving on roll fabrics within 1600mm is suitable for engraving technique of carpet,seat cover ,pillowcase and textile fabrics
nbsp Application Field Suitable for all kinds of fur,leather fabric.
nbsp Technical Parameter   Laser type
CO2 RF metal laser tube
Laser power
150W
Cutting area
1600mm*1000mm
Cutting table
Pedrail working table
No-load max speed
0-420000mm/min
Repeating location
±0.05mm
Moving system
Offline servo system, 5 inch LCD screen display
cooling system
Constant temperature water-chiller
Power supply
AC220V±5% / 50HZ
Format support
AI,DST,PLT,DXFetc
Standard collocation
Two 3000W exhaust fans,two 1100W exhaust fans
