3D Panels

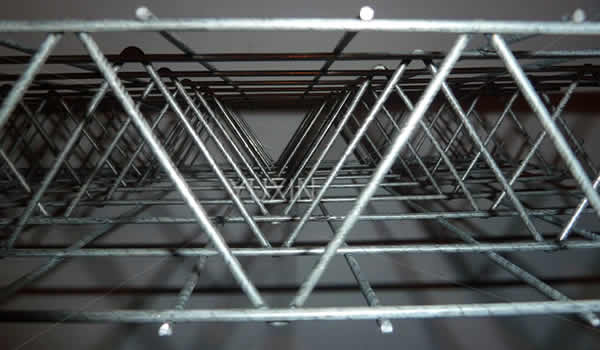

3D panel is a prefabricated Three Dimensional Lightweight Structural panel consisting of a super-insulated polystyrene core sandwiched between two engineered layers of 10 ga Steel Welded Wire Fabric Mesh. To complete the panel form process a 10 ga Steel wire truss is pierced completely through the polystyrene core and welded to each of the outer layer sheets of 10 ga Steel welded wire fabric mesh.

Components of the installed panel include:

Foam core for insulation.

Wire mesh on inside and outside.

Welded truss of wire cross pieces.

Sprayed concrete on both sides ("shotcrete").

3D Panels Specifications:

Mesh wire: 2-2.8mm galvanized or non galvanized.

Mesh opening (mm) : 50 x 50, 75 x 75 and 100 x 100.

Truss wire: 2-2.8mm galvanized or non galvanized.

Panel: 1220mm.

Panel length: 2400mm, 3000mm and 6000mm.

EPS Insulation Core: 50-100mm.

3D panel is a new wire mesh products, mainly used in construction. It's high tensile and is easy to install and these features make 3d wire mesh panels very popular by world construction customers.
