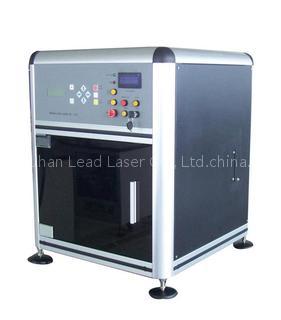

3D Crystal Laser Subsurface Engraving Machine

LD-EG-603A Rapid Scanner Laser Subsurface Engraving Machine is used to engrave 2D, 3D images or individual figures in crystal and glass products. It could work for a large scale production of 2D, 3D animals & plants, architectures, models such as car, boat, airplane etc, and 3D scene show.

Advantage:

LD-EG-603A Rapid Scanner Laser Subsurface Engraving Machine adopts the advanced galvanometer scanner technologytogether with 2KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively. The key parts of the apparatus mainly come from Germany and the USA. It is more reasonable and steady for long-term production. This machine has the software developed independently connected with 3D Camera what can fine engrave 3D portrait. The smaller size and lighter weight can be carried and fixed easily, and the protective package can keep the machine well. This machine is suitable for individual production and batch fast process. Just one machine could be satisfied with capacity for both storefronts network distribution and electric-business distribution.

Technique Specification:

ItemParameter

Laser Wavelength532nm

Laser Frequency3KHz

Maximum Engraving Speed1200000-180000dots/min

Maximum Engraving Range100mm*100mm*80mm

Power of the whole machine1KW

Electricity of the whole machine7A

Continuous working time12hrs

Number of Laser Heads1

Control SystemGalvanometer Scanner

Technology, DSP, 3 Dimension

Cooling SystemAir Cooler

Weight of the whole machine65Kg

Size of the whole machine580mm×550mm×700mm

Standard lifetimemore than 20000 hours

Engraving time for the material 50X50X80mm About 2 min.

Engraving time for the key chain 30X20X15mm About 0.7 min.
