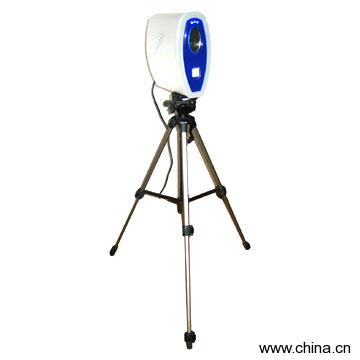

3D Camera

Model No.: Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:With the GH Series of laser subsurface engraving systems, 3D cameras such as the 3D camera A-3D Capturor II (0.3M pixels) or the 3D camera B -3D Mega Capturor II (1.3M pixels) can be used to take 3D photos to make 3D portraits with excellent quality.

3D camera B is the latest innovation in art 3D digitizing technology. Its ability to capture more than 1.3 million points of geometry and textures makes this Capturor a market leader in its field. It is renowned for the following characteristics:Hair and speed: It can capture hair which helps define the subject's face in the crystal.

A picture is taken in one second, a speed that makes it possible to take images of children.

Larger field: Users can capture images of up to 4 people together at a high-resolution Size and portability: Users can take the camera on location to a special event, as the system is very portable and can be carried easily by handPoint cloud generation and pre-visualization: You can judge if the point cloud result is satisfactory before the engraving procedureText and logos: Integrate company logos, brands or personalized signatures along with the image in your crystalCompatibility: The software can export to various formats including ASC, DXF, CAD and OBJ making it compatible with most laser engraving machinesTechnical Specifications:3D Camera A:1) People captured: 1 to 22) Field (mm): 655 x 4903) Resolution (mm): 14) Stand off distance (mm): 8505) Ref. distance (mm): 1,1006) Texture (pixels): 640 x 4807) Geometry (points): 0.3M8) Acquisition. time (sec): 0.49) Computer requirements: PC (Windows 2000, XP)3D Camera B:1) People captured: 1 to 42) Field (mm): 895 x 7153) Resolution (mm): 0.74) Stand off distance (mm): 8005) Ref. distance (mm): 1,1006) Texture (pixels): 1,280 x 1,0247) Geometry (points): 1.3M8) Acquisition time (sec): 0.79) Computer requirements: PC (Windows 2000, XP)
