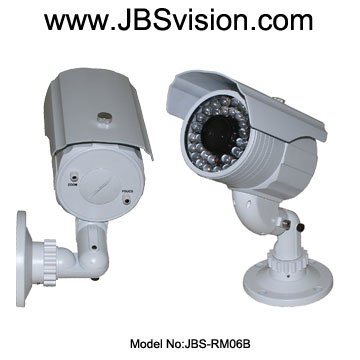

360° Rotational Bracket IR Camera with Varifocal Lens

Model No:JBS-RM06B Feature: 1.)Weatherproof IR camera Series 2.)Sony / Sharp Color CCD 3.)Hight Resolutions:420TVL,540TVL,600TVL 4.)IR LED: Ā8X36PCS IR LED working distance: 50M 5.)Usable Illumination:0Lux(Built In IR LED ON) 6.)Outstanding signal to noise ratio better than 48dB or 50dB 7.)White Balance auto control 8.)Auto electronic shutter time 9.)Waterproof Resistance:IP66 10.)4~9mm vari-focal manual iris lens,External lens adjusting (Standard) 11.)5-15mm dynamic varifocal lens (Optional) 12.)Cables built-in bracket 13.)With 3 Axis mounting bracket 14.)Removable IR-CUT Light filter switch function (optional) 15.)RS485 control auto focus (optional) 16.)DC12V /AV24V double voltage (optional) 17.)DC12V Style No.

RM06B Model No.

JBS-4206RM-B JBS-5406RM-B JBS-6006RM-B Pick up Device 1/3 Sony Color CCD Signal Formal PAL / NTSC Picture Elements NTSC:811(H)*508(V) Horizontal Resolution 420TVL 540TVL 600TVL(WDR,OSD) Sensitivity 0 Lux (IR LEDs on,at F1.2) Infrared LED 36pcs /Ä€8 Infrared LED Range 50m Scanning System NTSC:525 Lines, 60 Field/Sec 2:1Interlace Synchronization Internal sync.

Infrared Spectrum 850nm S.N Ratio ≥48dB(AGC off) ≥50dB(AGC off) Auto Gain Control Auto White Balance Auto Electronic Shutter Auto:PAL 1/50~1/100000(second),NTSC 1/60~1/100000(second) Back Light Compensation Auto Video Output 1Vp-p,75ohm Composite,BNC*1 Audio Output N/A Mirror N/A Weatherproof & waterproof IP66 Gamma Ratio ≥0.45 Auto-iris lens Control N/A Lens 4~9mm Vari-focal manual iris Lens (5~15mm varifocal manual iris lens optional) Exterior Focus Adjustment Available Power Supply DC12V 10% (DC12V / AC24V double voltage optional) Power Comsumption 650mA Operating Temperature -10℃ ~ +50℃ RH95% Max Dimension 259(W)*104(H)*159(D)mm Weight 1500g
