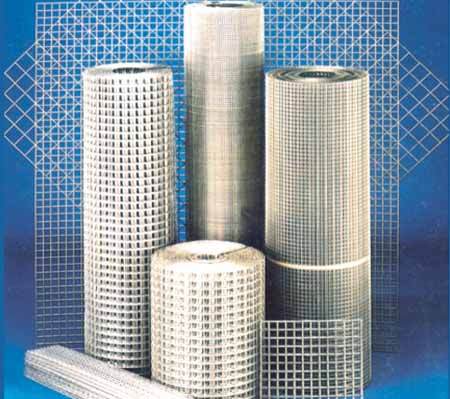

316 Stainless Steel wire mesh - 009 Specificaton & Trade Terms
| Model | 009 |
|---|
| Place Of Origin | China |
|---|
| Packaging | Standard Package |
|---|
| Brand | Heanjia |
|---|
| Certifications | ISO9001 |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | Unlimited |
|---|
| Minimum Order | 50kg |
|---|
| Loading Ports | Tianjin Seaport |
|---|
| Delivery Time | 3-40days |
|---|
316 Stainless Steel
Chemical composition (%)
Cr Ni Mo Fe C Si Mn P N
≤
16.0-18.0 10.0-14.0 2.0-3.0 bal 0.08 0.75 2.0 0.045 0.10
Mechanical Properties:
Tensile strength ( M/Pa ) 20 ºC More than505
Yield strength 0.2% (MPa)20 ºC More than205
Characteristics:
1. High oxidation-resistance in air at ambient temperature
2. Resistance to corrosion and staining
3. Low maintenance and familiar lustre
4. Good mechanical properties and fabricability
Applications:
1. Food industry
2. Domestic tools industry
3. Architectural panelling, railings & trim
4. Chemical containers, including for transport
5. Heat Exchangers
6. In the marine environment
Specification:
Wire ASTM A580/A580M Diameter:0.05mm-10.0mm,
0.002 Inch to 0.3937 Inch
Wire Mesh GB/T 5330.1
GB/T 17492
JB/T 9155 0.5-250 mesh/Inch
Thickness: Min0.05mm
Sheet BS EN ISO 18286-2010 Thickness: 0.05mm and above
