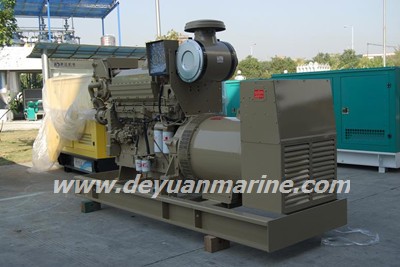

30KW Cummins marine generator set
Specifications
- Origin
- china
- Price Term
- EX-Work
- Payment Term
- T/T
30KW Cummins marine generator set is a Industrial Power Supplies product. Key specs — Origin: china; Price Term: EX-Work; Payment Term: T/T.
Product Description
Genset Technical Deatails: Genset Model:DY-CGM30A Engine Model:4BTA3.9-GM47(Cummins engine) Alternator Model:UCM224C Rated Power:30 KW Standby Power:33 KW Rated Voltage:380/220V, 400/230V, 415/240V, 440/254V Frequency :50 HZ Power Factor:0.8 Winding Connection:3-phrase, 4-wire Dimension(mm):1500*750*1200 Net Weight:850 KG Genset Engine Details: Engine Model:4BTA3.9-GM47 (Cummins brand) Rated Power/speed:47 KW 1500rpm Bore * Stroke (mm):102*120 Engine Type:4 Cylinders, in Line,3.9 L Alternator for DY-CGM30A Generator Set Alternator Model UCM224C (Stamford brand) Frequency 50 HZ/60HZ Rated Votage 380/220V, 400/230V, 415/240V, 440/254V Winding Connection 3-phrase, 4-wire Power Factor(COS) 0.8 Stator Winding Double Layer Concentric Exciting Method Brushless Self-exciting Insulation System Class H Protection Class IP23 Winding Leads 12 Winding Pitch Two Thirds Voltage Regulation ± 1.0 % Efficiency 87.2% ~ 88.4% Waveform Distortion
