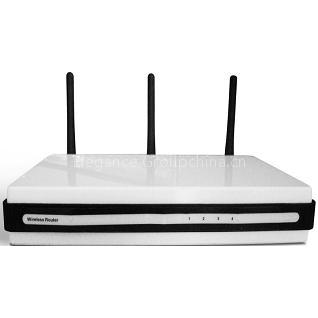

300M Wireless Router

AJ-WR300M 300M Wireless Router (2T3R 802.11n Router) Specification: Chipset Ralink Device Interface LAN: 4x10/100Mbps Port WAN: 1x10/100Mbps Port LED Indicators Power,WLAN,WPS,WAN,LAN1-4 Antenna Type 3 External 2d Bi Fixed antenna or RSMA Detachable antenna AP/Router mode control It can be switched from the router mode to AP mode Standard IEEE 802.11n (draft2.0),IEEE802.11g,IEEE802.3,IEEE802.3u Frequency Band 802.11b ISM band 2.400 ~ 2.484GHz (subject to local regulations) 802.11g ISM band 2.400 ~ 2.484GHz (subject to local regulations) 802.11n draft ISM band 2422 2452MHz (channel BW=40MHz) 2400 2483.5MHz (channel BW=20MHz) RF Mode 2T3R for HT20,HT40, 1T3R for 802.11b/g mode Spread Spectrum 802.11b Direct Sequence Spread Spectrum (DSSS) 802.11g Orthogonal Frequency Division Multiplexing (OFDM) HT20:Orthogonal Frequency Division Multiplexing (OFDM) multiple-input/multiple-output (MIMO) HT40Orthogonal Frequency Division Multiplexing (OFDM) multiple-input/multiple-output (MIMO) Modulation QPSK/BPSK/CCK/64QAM/16QAM Transmission Rates 11n: 270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps 11g: 54/48/36/24/18/12/9/6M(adaptive) 11b: 11/5.5/2/1M(adaptive) Receive sensitivity 802.11g ( 3RX) Nominal Temp Range: - 6Mbps -91d Bm, typical, 2d Bm - 54Mbps -72d Bm, typical, 2d Bm 802.11b Typ: , 2d Bm Typ: , 2d Bm HT20(3RX) MCS=0 -87d Bm, 2d Bm MCS=15 -67d Bm, 2d Bm HT40(3RX) MCS=0 -85dbm, 2d Bm MCS=15 -64d Bm, 2d Bm Transmit Power 18d Bm(max) Security l 64/128 WEP l 802.1x l MAC address filtering l SPI firewall l WPA, WPA2, TKIP, AES Management Web-based management POWER DC:9V/1A Environment Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5%~ 90% RH non-condensing
