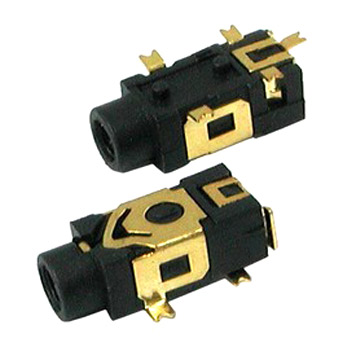

2.5 Phone Jack

Specifications

Origin: China (Mainland)

Request Quote

Quick answer

2.5 Phone Jack is a Solar Related Products product. Key specs — Origin: China (Mainland).

Product Description

Specifications of 2.5/3.5 jack (SMT): 1) Temperature: -40 ~ +70°C 2) Rated load: DC 30V, 0.5A 3) Contact resistance: ≤0.03Ω 4) Insulation resistance: ≥100mΩ 5) Withstand voltage: AC 500V (50Hz)/min 6) Actuating force: 3 - 20N 7) Life: 5,000 times
