Listing ID#10011866
ModelARW-2400-2500-1
CategorySolar Related Products

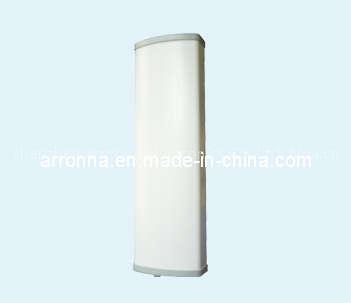

2.4g WiFi Directional Panel Antenna 8dbi
Specifications
- Brand
- Arronna
- Origin
- CHINA
- Price Term
- FOB
Quick answer
2.4g WiFi Directional Panel Antenna 8dbi is a Solar Related Products product. Key specs — Brand: Arronna; Origin: CHINA; Price Term: FOB.
Product Description
Frequency Range(MHz) 2400-2500
Gain(dBi) 8
V. S. W. R. <1.4
Polarization Vertical
Horizontal-3dB Beamwidth 90
Vertical-3dB Beamwidth 55
Electrical Downtilt 0
Front-to-Back Ratio(dB) 22
Impedance(Ω ) 50
Lightning Protection Direct Ground
Maximum Input Power(W) 100
Gain(dBi) 8
V. S. W. R. <1.4
Polarization Vertical
Horizontal-3dB Beamwidth 90
Vertical-3dB Beamwidth 55
Electrical Downtilt 0
Front-to-Back Ratio(dB) 22
Impedance(Ω ) 50
Lightning Protection Direct Ground
Maximum Input Power(W) 100
Mechanical Specifications:
Connector Type N(F)
Radiating Element Material Aluminium
Radome Material UPVC
Radome Color Gray
Dimension(mm) 160× 160× 70
Weight(Kg) 2.5
Operating Temperature -40~+70
Reposition Temperature -55~+80
Maximum Wind Speed(km/h) 210
