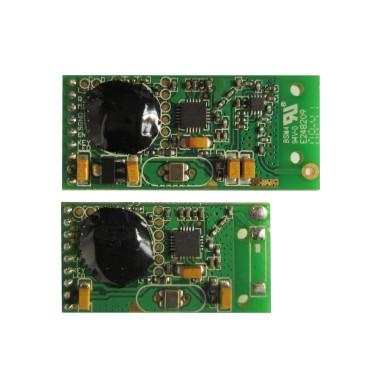

2.4G Digital Wireless Tranceiver Module

1.

Features *Digital audio with 64K sampling rate and 16-bit resolution. *Low power consumption. *GFSK digital modulation/demodulation. *20Hz ~ 20 KHz audio frequency response. *90dB audio dynamic range. *Power-on function to prevent pop noise. *Avoiding reception errors by employing forward error correction (FEC). *Operating at 2.4GHz ISM band with 20 selectable channels. *-85dBm receiving sensitivity, 45dB channel rejection and Application distance up to 180 meters (L.

O. S. ) with perfect reception. 2. Applications *Car Audio /Car Speaker *Home theater rear speakers *Wireless speakers *Sound Card, MP3, CD player and DVD player *Headphone *Ordinary sound box 3. Specification Model NO.

SOYO-WM24G01-T SOYO-WM24G01-R Description Transmitter Box Receiver Box Supply voltage 3.6-12V 2.5-3.6V Current consumption 110mA (MAX) 40mA (MAX) Operating temperature -25 ~ 85 degree -25 ~ 85 degree Frequency range 2400 ~ 2524MHz 2400 ~ 2524MHz Modulation GFSK &nbsp Channel number 20 20 Channel cpacing 4MHz 4MHz TX Power(MAX) 20dBm(Can choose from 0dBM till 20dBM) Input impedance >10K Ohm &nbsp Input level 2.5Vp-p (MAX) &nbsp RX Sensitivity -85 dBm (Typical) Image rejection >30dB the image frequency Output impedance < 1K Ohm Output level 2 Vp-p (MAX) Response 20~20KHz Dynamic range 88dB (Typical) SN ratio 95dB (Typical) THD 0.1% (Typical)
