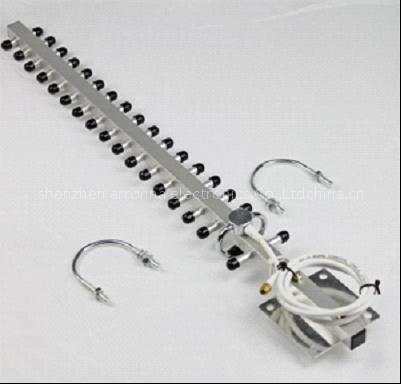

2.4GHz?Yagi?Antenna(18 elements)

Product Name 2.4GHz Yagi Antenna(18 elements)Description ARY-2400-2483-18 Series Yagi antennas designed by ARRONNA for the 2400MHz long distance communication system. They feature High Gain, Broad working bandwidth, good F/B Ratio etc.

The light structures make them easy to install.Electrical SpecificationsModel ARY-2400-2483-18Frequency Range–MHz 2400-2483Bandwidth-MHz 83Gain-dBi 18Horizontal BeARwidth -° 40Vertical BeARwidth -° 36F/B ratio-dB 16VSWR ≤1.5Input Impedance -Ω 50PolARization Vertical or horizontalMaximum Power -W 100Connector N Female or CustomizedMechanical SpecificationsDimensions-m 0.71Weight-kg 0.9Mounting Mast Diameter-mm Ф30-50
