Listing ID#10013238
ModelEHSD2400G24A09
CategoryTelecommunications

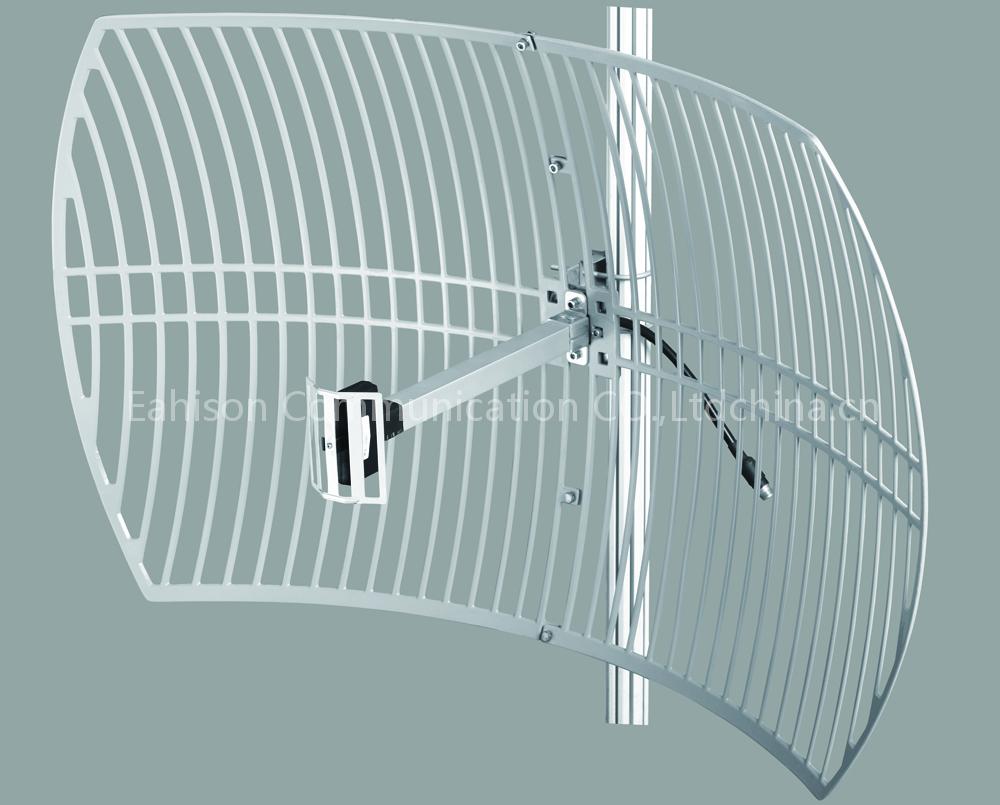

2.4GHz Grid Antenna
Specifications
- Brand
- Eahison
- Origin
- Guangdong, China (Mainland)
- Price Term
- FOB
Quick answer
2.4GHz Grid Antenna is a Telecommunications product. Key specs — Brand: Eahison; Origin: Guangdong, China (Mainland); Price Term: FOB.
Product Description
Model | EHSD2400G24A09 |
Frequency Range | 2400-2485MHz |
Bandwidth | 85MHz |
Gain | 24dBi |
Beamwidth | H:11°E:10° |
Horizontal Beamwidth | 10° |
Vertical Beamwidth | 12° |
F/B Ratio | ≥32dB |
V.S.W.R | ≤1.4 |
Nominal Impedance | 50Ω |
Polarization | Vertical or Horizontal |
Max Power | 100W |
Mechanical tilt | ±10° |
Connector | N-female |
Antenna dimension | 0.6×0.9 m |
Lightning protection | Direct ground |
Pole dimension | Ф40-50mm |
Weight | 3.5kg |
Rated Wind Velocity | 60m/s |
Temperature | -40℃~+70℃ |
