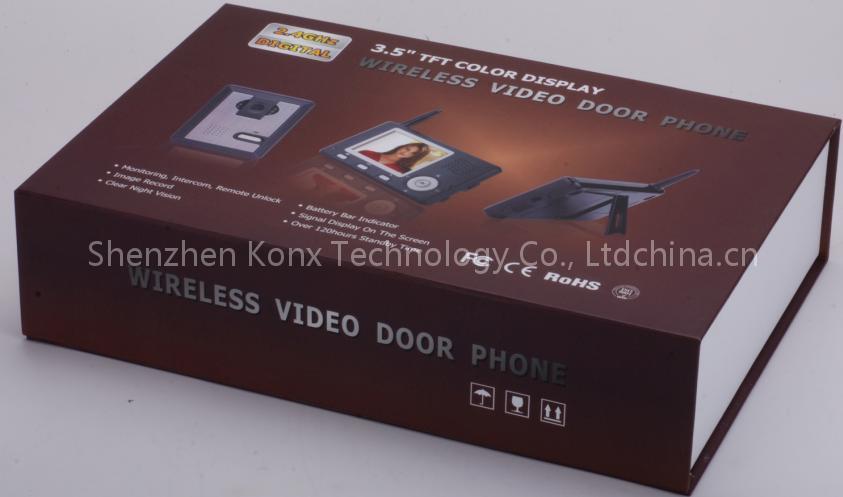

2.4GHz Digital Wireless Video Door Phone

This system operations in the 2.4GHz radio band for wireless transmission of digital audio and video signals. It can be used in apartments, villas, hotels, officers, publib buildings,etc.With a fashional and fresh outlook, the view is clear and sharp. The outdoor camera is easy to install while the indoor monitor does not require any communication wire. You can use the system where the wireless signal can reach, such as dining room, living room, balcony, kitchen and so on. So this is an ideal safety product for modern families.Indoor monitor can wall-mounted or desktop, and can be moved at any time, so you can know or see your guests at any time and location.
Wireless Video Door Phone, , Door Phone System
nbsp;FeaturesOur has many great features compared to other similar products:1. 3.5'' wide angle LCD screen for better view2. Battery bar display on screen (same as mobile phones)3. Removable battery of the Indoor Unit (convenient to use and maintain)4. Signal strength display on screen, to know the best communication distance5. Auto photo record function (when nobody answers the call)6. Manual photo record function7. Wide angle lens and IR night vision camera, work well even in dark environment8. 2.4G Frequency-Hopping Spread Spectrum technology affords stable A / V signal transfer;9. One outdoor unit can support up to 4 indoor units and vice-versa.
nbsp;Specifications



General:
Working Distance:	250Meters (No-obstacle circumstance)
Video Compression:	MJPEG
Audio Compression:	ADPCM
Frequency:	ISM 2,400~2,483 MHz
Transmission Power:	17dBm
Modulation:	GFSK
Working Temperature:	-15°C~55°C/5°F~131°F
Working Humidity:	<85%
Outdoor Camera
Model No. :	TX01
Camera:	1/4'' CMOS 300K pixels
Mini Illuminance:	0Lux (IR on)
Night Version:	6 IR LED lights, visible within 2 meters
Adapter Input:	AC100~ 240V, 50/60Hz
Adapter Output:	DC12V/1A
Power Consumption:	Standby: 0.12W; Working: 1.8W
Installation:	Wall mounted
Size:	125mm*94mm*25mm
Material:	ABS Plastic & Aluminum alloy
Indoor Monitor
Model No.:	RX3501
Screen:	3.5'' wide angle(65 °) LCD screen
Resolution:	320*240 pixels
Image Record:	Around 160 pieces color photos
Battery Bar Display:	5 grades
Signal Display:	6 grades
Power:	By removable& rechargeable Lithium battery
Battery:	1350mAh; 3.7V
Power Consumption:	Standby: 10mAh(0.04W); Working: 120mAh(0.45W); Max: 150mAh(0.56W)
Battery working time:	Standby: 135 hours; Continous working: 10 hours
Charging time:	2~3hours (above 5 hours for the first time)
Input:	AC100~ 240V, 50/60Hz
Adapter Output:	DC5V/1A
Installation:	Wall mounted/lift on desk/Portable
Material:	ABS Plastic
Size:	141mm*87mm*19.5mm
