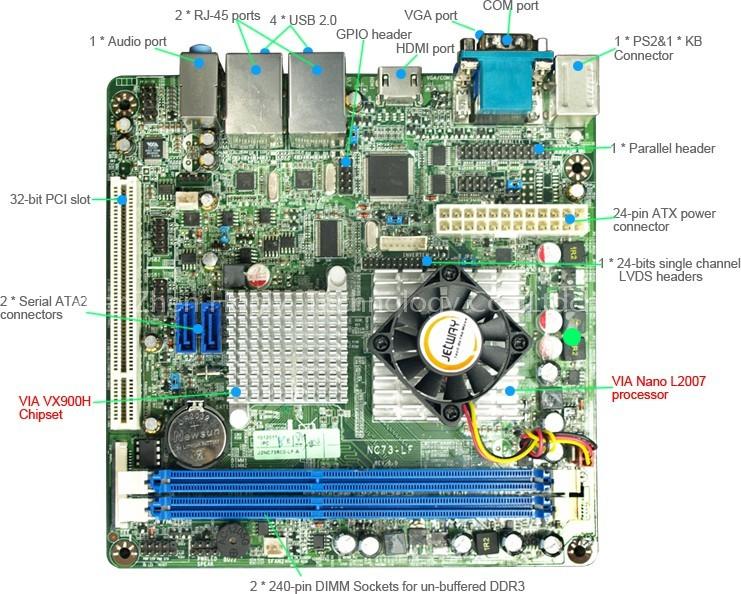

Name: 2LAN+HDMI Mini-itx Motherboard
Brand: hoply
SKU: HL73-LF

VIA VX900H Chipset
Support VIA Nano L2007 (65nm,FSB 800MHz,1.6GHz) processor
Integrated Chrome9 HD DX9 Engine
Integrated LVDS support 24-bit TFT LCD
Support 1 x 32-bit PCI slot
Support 2 x Serial ATA 2 Devices
2 * Gigabit LAN
Support DC Fan
VIA VT1705 HD Audio Codec with 6-Channel
170 x 170mm Mini-ITX Form Factor
Support Watch dog Technology

CPU	Support VIA Nano L2007 (65nm, 1.6GHz)processor Front Side Bus 800MHz
Chipset	VIA VX900H Chipset VIA Chrome9 HD DX9 3D engines ( Share System Memory: 64/128/256/512MB)
Memory	2 * 240-pin DIMM Sockets for un-buffered DDR3 1066MHz SDRAM up to 8GB
Expansion Slots	1 * 32-bit PCI slot
Power Management	ACPI S3/S4 Compliant ,supports VIA PowerSaver™ feature
Storage	2 * Serial ATA2 3Gb/s connectors with RAID 0,1 function
Audio	VIA VT1705 HD Audio Code with 6-Channel
Ethernet LAN	2 * RTL8111E 10 / 100 / 1000 PCI-E LAN
USB	Embedded 8 * USB 2.0/1.1
LVDS	Onboard 24-bit Single channel LVDS connector
Rear Panel I / O	4 * USB 2.0/1.1 ports 1 * PS/2 connector for Keyboard and Mouse 2 * RJ-45 ports 3 * Audio I/O ports ( Line-in, Mic and Line-out ) 1 * VGA port 1 * DB-9 RS232 COM port 1 * HDMI Connector
Internal I / O	1 * CPU Smart Fan Connector, 2 * Sys/Chassis Fan Connectors 2 * USB 2.0/1.1 headers for 4 USB ports 1 * 9-Pin COM Port header 1 * 24 bit Single Channel LVDS header 1 * Parallel header 1 * GPIO header 1 * 24-pin ATX power connector
BIOS	Award 8MB DIP-SPI Flash ROM
Form Factor	Mini-ITX Embedded Motherboard(170mmx170mm)
Packing	Color Box Dimension:200(W) x 200(D) x 70(H)mm 20 PCS in Cases Gross Weight :15.4KGS 20 PCS Net Weight:10.3KGS 20 PCS / Cases, Case size : 720(L) x 410(W) x 200(H)mm
Certificate	CE,FCC,RoHS
Functional	ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Temperature	Operating within 0~60 centigrade Storage within -20-85 centigrade
