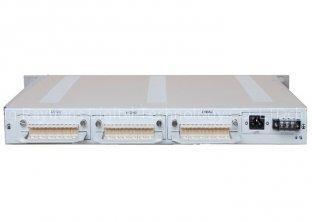

24E1 SDH Multiplexer is a LED Modules product. Key specs — Origin: Beijing,China; Price Term: FOB.
Product Description
IDM MSTP155-24 is a newly-developed optical fiber transmission equipment by RDT company based on SDH technology. It manages to satisfy not only users’ needs for broadband,narrowband and other fiber optical transmission/access services, but also users’ needs for larger capacity and more reliable communication protection. It also provides succinct and faultless network management function which would carry out equipment configurating, fault-finding, data collecting and real-time monitoring on network performance. This item also features all of its components of industrial grade, comprehensive EMC and interface protection design.
1. Features of 24E1 SDH Multiplexer
Standard 19-inch 1U chassis structure, easy to install.
Two STM-1 optical interfaces with 1+1 channel protection.(Either one fails, the other will back it up)
Two V.35/V.11 [N × 64K (N = 0 ~ 31)] channels.
Integration of SDH, PCM, PDH and Ethernet.
Provide up to 4 Ethernet networks with physical isolation.
Provide 3 slots which can be inserted with 3 service disks, 8E1 interface optional, 8E1+100M PDH, network bridge interface, 8 telephone interfaces and 8 RS232/RS485/RS422 interfaces.
Support networking mode: point to point, chain type, tree type, star type, ring type etc
In compliance with the ITU-T G.813 standards.
Faultless network management feature, online real-time monitoring.
2. Specifications of 63E1 SDH Multiplexer
2.1 Optical interface
Rate | 155Mbps±4.6ppm | Single/multi-mode | |
Consumption | -15 ~ -8dBm | Wavelength | 1310nm/1550nm |
Physical connector | FC/SC | Sensitivity | Better than -32dBm |
Transmitting range | 40km or further(with optical module) | ||
2.2 E1 interface
Rate | 2048Kbps | Code | HDB3 |
Comply with | ITU-T G.703 standard | Impedance | 75Ω/120Ω |
Frame structure | PCM30/31 | signaling | Inbound Signaling |
Channels | Up to 24 | ||
2.3 Ethernet interface
Rate | N × 2.048Mbps(N≤50) | Duplex | Full/Half auto-negotiation |
Physical connector | RJ-45 | Comply with | IEEE802.3 |
2.4 FXO/FXS interface
Impedance | 200Ω + 560Ω//0.1μF | Audio frequency range | 300Hz ~ 3400Hz |
Compression ratio | Class A in ITU G.711 | Loop current | 25mA |
2.5 EM2/4 interface
Audio frequency range | 300Hz ~ 3400Hz | Compression ratio | Class A in ITU G.711 |
Echo loss | >18dB | Impedance | 600Ω balanced |
2.6 V.24 interface
Rate | asynchronous <=9600bps and asynchronous 64kbps | Comply with |
