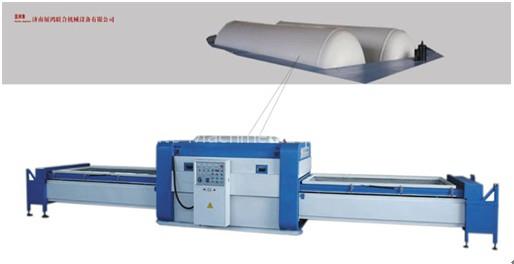

2480E Vacuum Laminating Machine

1. Strong horsepower, large and multi-stage vacuum gas tanks, domestic top-grade vacuum pump (imported pump is optional)
2. Patented heating system featuring even heating, two sets of heating systems, able to precess high-light PVC.
3. Automatic double tables of international standard, human-based temprature controlling region, efficient, green and energy-saving.
4.Applicable to the covering of kitchen cabinet doors with PVC.

Specifications of this laminating machine:

Overall Dimension: 9640×1680×1750mm
Maximum processing thickness: 35mm
Raring working pressure: Vacuum≥-0.095Mpa
Power: 25kw
Actual Power Consumable: 12kw
Weight: 2.5T
Voltage: 380V 50HZ
