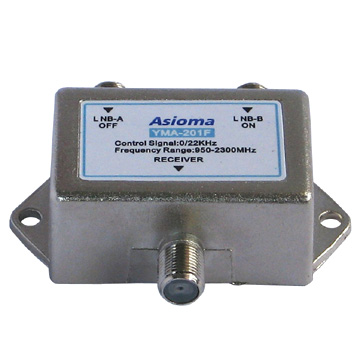

22k Satellite Receiver

Product Name: 22k Satellite ReceiverModel Number: YMA-201FPlace of Origin: ChinaFeatures: 1) Zinc die-cast housing with nickel plated 2) 75Ω British system F-type connector 3) Uses high quality high frequency devices, low insertion loss, high isolation Specifications: 1) Bandwidth: 47 - 2,300MHz 2) Insertion loss: ≤2dB 3) Return loss: ≥8dB 4) Isolation: ≥24dB 5) Work power supply: DC13 - 18V/30mA 6) Max. current passing: 500mA 7) Signal control: 0/22kHz 8) Dimensions: 59 x 49 x 18mm
