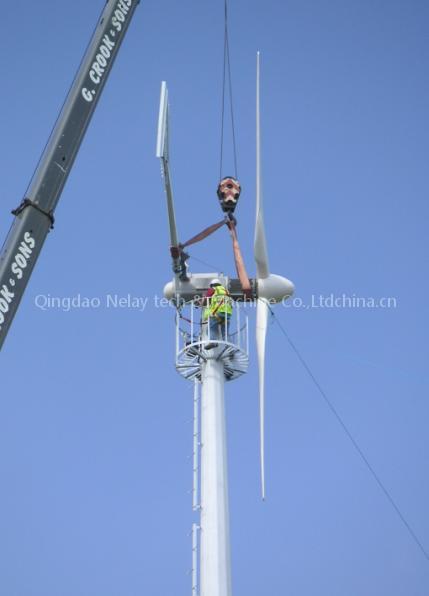

20kw wind turbine generator (ce-approved)

off-grid working system

on-grid working system

Below is the technical data for 20kw wind turbine, for you reference:

Model: FD10-20kw (now we have D-12m blades rotor for it. The rated wind speed is 9.8m/s)
Rotor Diameter: 10m
Number of Blades: 3PCS
Material of Blades: Fibre glass expoxy
Cut-in wind speed: 3m/s
Working wind speed: 4-30m/s
Survival wind speed: 50m/s
Rated wind speed: 12m/s
Rated rotate speed: 170r/min
Rated output power: 20kw
Max output power: 30kw
Type of tower: Manganese steel independence tower
Type of generator: Permanent-magnet 3 phrase AC
Speed regulation method: Yaw
Stop method: Brake by hand drag
Working voltage: DC500V
Tower height: 15m
Tower weight: 2800kg
Wind turbine main body weight: 1300kg
Measurement(CBM): 8.5CBM
Life span: 15 years;
Warranty: 2 years

For more details, pls contract with us!
