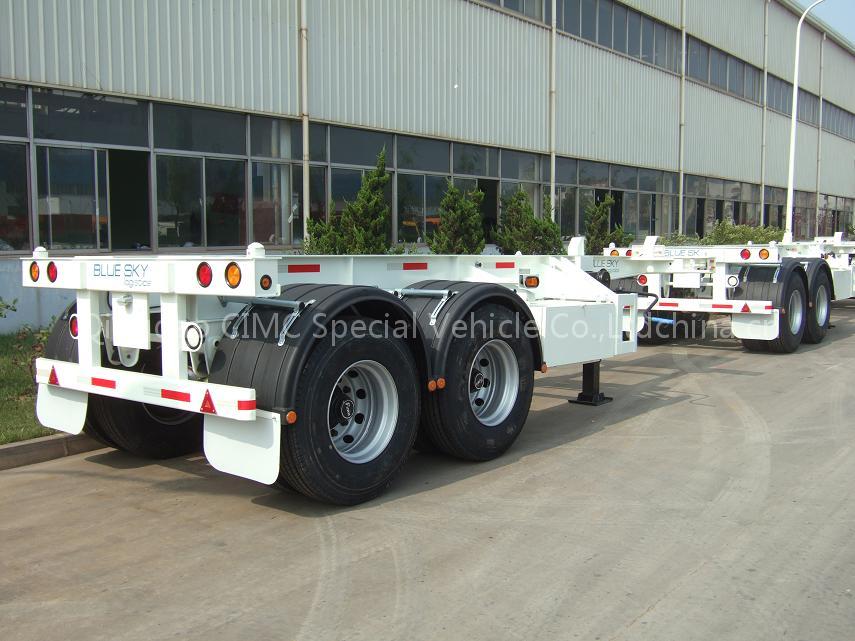

20' skeleton trailer

The trailer is designed for stevedoring and transporting 1x 20' ISO Cargo Containers. Dimension: Length: Approx 7, 211mm Width: Approx 2, 480 mm Height: Approx 1, 466mm unload King Pin Location: Approx 450mm from the front face of the front bolster Landing gear position: Approx 2, 200 from the king pin.

Axle spacer: Approx 4, 600mm + 1, 310mm King Pin Height: Approx 1, 280mm with the chassis level (The above dimension will be adjusted according to the tractor specification) Weight: Tare Weight: 3, 500 kg± 4% Max.

Payload: 30, 480 kg Gross Vehicle Weight: 33, 980 kg Steel Structure: Material: High strength low alloy steel with Q345(350MPa) yield strength is used for welded I-beam and Q235(235MPa) yield strength steel is used for the fabricated parts. Main Beams: 380mm deep x 146mm wide x 6mm web welded I-section main beams.

OEM Parts Configuration: King Pin: 2" bolting king pin. Brand: JOST. Made in China. Twist Locks: Four (4) ISO type twist locks. Made in China. Landing Gear: 2 speed road side winding with sand shoe, Lifting capacity 24T. Type: JOST D200T, left operating. Made in China. Suspension: Heavy duty undermount two-axle suspension with equalizers 8-leaf spring.

Axles: 150x150 square axle with 13 tons capacity. Brake: S420x180, Wheel fitting 10xM22x1.5/ PCD335/281. Type: FUWA. Made in China. Rims: 8.0-20, 10 Holes ISO, 8 pieces. Tires: 11.00R20, 8 pieces. Brake System: Dual air brake system, 2*40 Liters Air Pressure Tanks; WABCO relay Emergency valve, none ABS system.

Brake chamber: Type 30/30 on the rear two axles, Type 30 on the front axle. Electrical System: 24 volt lighting system with modular wiring harness, 7 way ISO receptacle infront of the front bolster, norms NO. 1185. Chinese standard. No E-mark and SAE certificate.

Others: Spare Tire Carrier: Equipped one set per chassis without spare tire Side Guard: Standard Tool Box: Equipped one set Painting: Colored by customer's request Marking: Qingdao CIMC standard
