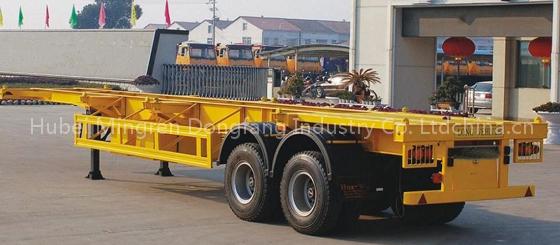

20 Ft Skeletal Container Semi-trailer is a ATVs product. Key specs — Origin: China; Price Term: FOB.
Product Description
DIMENSIONS | ||||
TareWeight | 4000kg / 4800kg | Payload | 25000kg / 35000kg | |
OverallLength | 6800mm / 12480mm | OverallWidth | 2480mm | |
SPECIFICATIONS | ||||
I Beam& Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm-16mm,width 140mm; Middle Flange 6mm-8mm,Height 500mm, Bottom Flange 16mm--20mm,width 140mm. | |||
Axle | FUWA ,BPW or other Chinese Brand 9 tons,10.5tons,11.5tons,12 ton,13tons | |||
Suspension | Heavy duty mechanical suspension or air suspension | |||
Leaf Spring | piece Leaf spring for heavy loading or air bag | |||
King Pin | JOST or Chinese brand 2” Bolt-in King Pin or 3 1/2” Bolt-in King pin | |||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear. | |||
Wheel Rim | 8.25-22.5 / 8.0-20 / 8.5-22.5 | |||
Tire | 11R22.5(Tubeless) / 11.00R20( Radial) /11.00-20( Nylon) | |||
Twist Lock | ISO twist lock for container | |||
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |||
Electric System | Gladhand, 24V-coupler, Rear lamp. Side lamp, 7-Pin coil wireless,Led light. | |||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint. | |||
Accessories | One standard tool box, One set of spare tire including a carrier. | |||
