Listing ID#10167069
ModelHT-A010
CategoryOther Safety Products

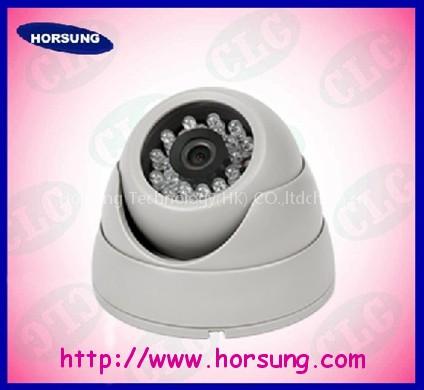

20M IR Dome Security CCTV Camera HT-A010
Specifications
- Brand
- Horsung/OEM
- Origin
- Shenzhen, China
- Price Term
- FOB
Quick answer
20M IR Dome Security CCTV Camera HT-A010 is a Other Safety Products product. Key specs — Brand: Horsung/OEM; Origin: Shenzhen, China; Price Term: FOB.
Product Description
Key Features:
24pieces Φ 5 LED
IR Night Vision: 20-30M
﹡420TV lines, 480TV lines and 520TV lines clear picture display
﹡IR effective range: 20-30M
﹡High reliability and sensitivity
﹡Adopt professional IR lens - excellent image quality at night
﹡Reasonable price ,high quality be used all over the world .
| Model | HT-A010S | HT-A010A | HT-A010C | HT-A010E |
| Image Senor Device | 1/4SHARP CCD | 1/3SONY CCD | 1/3SONY CCD | |
| Horizontal Resolution | 420TVL | 480TVL | 540TVL | |
| Signal System | PAL/NTSC | |||
| Lens | Fixed Lens Options: 3.6~8mmStandard: 3.6mm | |||
| Electronic Shutter | 1/50(1/60) ~1/100,000sec | |||
| S/N Ratio | ≥48db | |||
| Min. Illumination | 0Lux/F1.2(IR ON) | |||
| AGC | Auto | |||
| BLC | Auto | |||
| White Balance | Auto | |||
| Video output | 1.0Vp-p/75Ω(BNC) | |||
| IR led Board | 24pieces Φ 5 LED | |||
| Night Vision | 20-30M | |||
| Waterproof Criterion | IP60 | |||
| Power supply | DC12V | |||
| Dimensions | Φ93mm*64mm | |||
