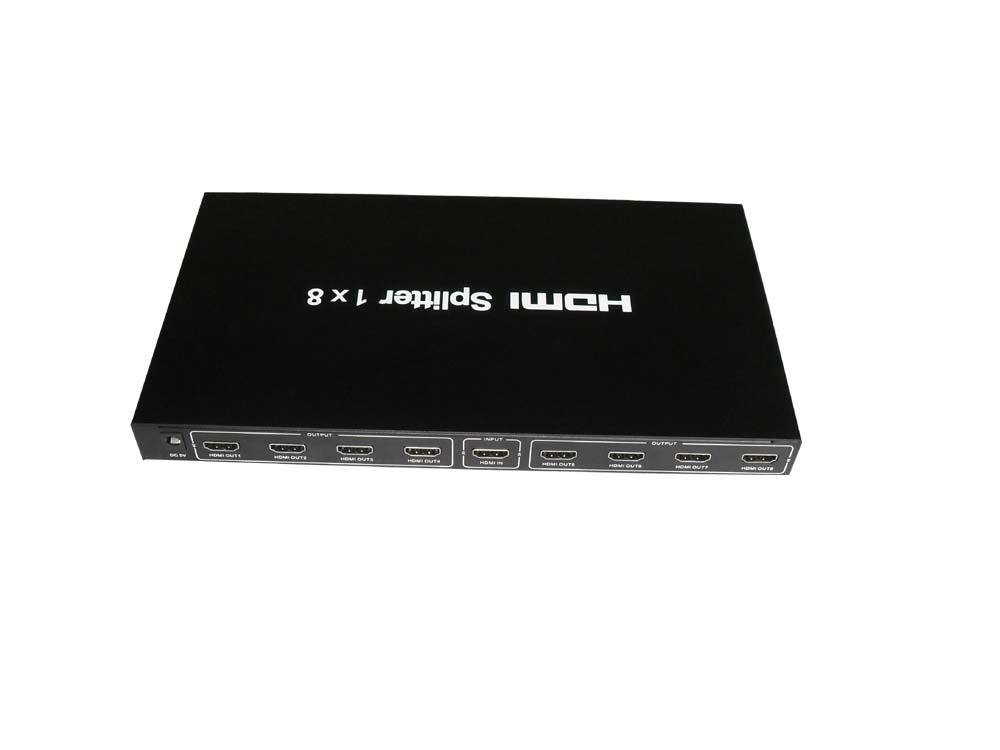

1x8 HDMI Splitter Support 3D

3D Mini 1x8 HDMI Splitter Distribution Amplifier Full HD 1080p v1.3

Model: GIEL-H08

Introduction

The 1x8 HDMI Distribution Amplifier Splitter distributes the HDMI input into eight identical outputs. The synchronized outputs also have the ability of buffering and amplifying. Each unit's output can achieve long distance transmission of HDMI signal up to 15 meters. When two or more 1x8 splitters are cascaded, they can be used to create a larger distribution and longer length.These HDMI Video Splitter units are HDCP compliant.HDMI Splitter is an ideal product for home theater and digital signage applications.

Features

Support CEC/3D Easy to Use: Install in seconds, simple plug and play

Support digital audio split in HDMI, such as LPCM/Dolby-AC3/DTS7.1/DSD.

Support deep color 36bit and signal retiming.

LED Indicate

When source device and the sink display devices work in HDCP status, the color of LED relative to the sink will be blue. When source is Non-HDCP, the color of LED relative to the sink will be red.

Specifications

Input Video Signal 0.5-1.0 volts p-p

Input DDC Signal 5 volts p-p (TTL)

Maximum Single Link Range 1920X1200, 1080P

Output Video HDMI 1.3+ HDCP1.0/1.1

VGA 640x480,800x600,1024x768,1920x1200

DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P

HDMI Compliance HDMI 1.3

Frequency Up to165MHz

Interlaced(50&60Hz) 480i,576i,1080i

Progressive(50&60Hz) 480p,576p,720p,1080p

Audio Format DTS-HD/Dolby-trueHD ,LPCM,Dolby-AC3,DTS7.1/DSD

Size(L-W-H) 382mmx 140mm x 62mm

Weight(Net) 1.9KG

Limited Warranty 1 Year

Operating Temperature 0 to +70 °C

Operating Humidity 10% to 85 % RH (no condensation)

Storage Temperature -10 to +80 °C

Storage Humidity 5% to 90 % RH (no condensation)

Accessories

Item Quantity Remark

HDMI Splitter 1

DC Power Adapter 1

User Manual 1 EN
