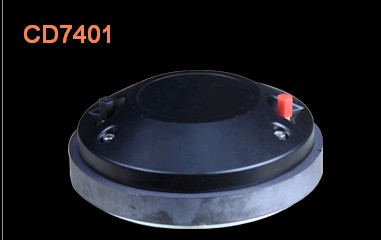

1.5 inch Compression Dirvers (CD7401speaker) - CD7401speaker Specificaton & Trade Terms
| Model | CD7401speaker |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Throat Diameter 1.5 inch
Rated Impedance 8 ohm
Power bandling(1.0k-18kHz)
Nominal2
Continuous Porgram3
90
180
Watts
Watts
Sensitivity4
(lw/lm,on axis,on horn)
110
dB
Frequency Range5 500~20k Hz
Minimum Impedance(Zmin) 7.9 ohm
Voice Coil Diameter 3 inch
Voice Coil Material Edgewound Aluminum
Voice Coil Winding Former Kapton
Phase Plug Material Comoisute
Diaphragm Material Titanium
Flux Density 1.5 T
Magnet Material Ceramic
Mounting Information
Overall Diameter 169 mm
Overall Depth 63.5 mm
Net Weight 4.5 mm
4xM6 holes, 90Deg on 100mm diameter
Frequency response curve of the driver measured with 1w input on rated impedance at 1m distance on axis from the mouth of horn.
Driver mounted on H226 horn
Impedance and phase curves measured I free air
