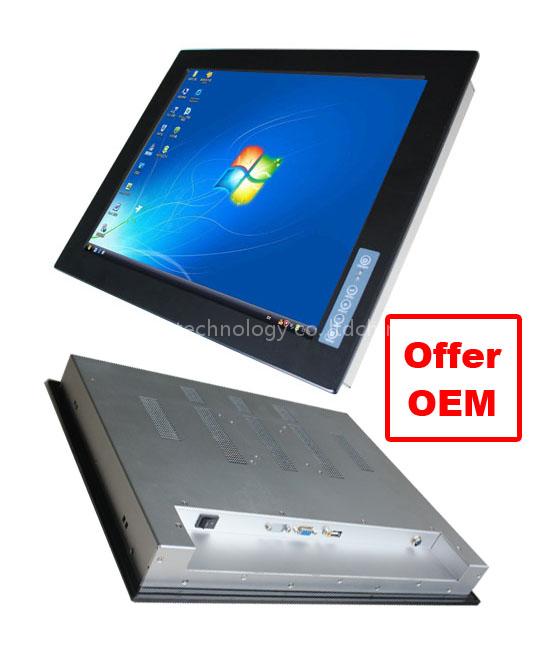

19 Inches industrial LCD monitor IEC-619

19" lcds > industrial Monitor > industrial LCD > industrial LCD Monitor >19 Inches LCD industrial monitor IEC-619

Touchscreen 19 Inches LCD industrial monitor IEC-619,Support 1024*768 pixels,Resistive touchscreen.

19" Industrial LCD Flat Panel Monitor
Features
19" TFT LCD Panel support 1280x1024 pixels
Material: Aluminum magnesium Alloy
Rugged construction design
Input signal : VGA/AV
250 cd/m2 brightness
Resistive type of touchscreen
NEMA4/IP65 compliant front panel
Panel mounting with clip
Meet standard VESA hole , support desktop stand / wall mount / swing arm mounting

Specifications
Display
Size 19"TFT LCD
Resolution 1280x1024
Color 16M
Backlight 2xCCFL
Luminance 250 cd/m2
Contrast Ratio 700:1
View Angle 160°(H) , 140°(V)
LCD MTBF 50,000hrs
System
Construction Aluminum magnesium Alloy
Color Black
I/O DC input/VGA/AV/USB(COM optional)
Installation Install on desk,Hanging on the wall or VESA cantilever install
Power Supply DC12V input
Touchscreen
Type Resistive Touchscreen
Resolution 4096*4096
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force ≤250g
Life Expectancy 10 Millions
Environmental
Oprerating Tempreture 0 °C to 60 °C
Storage Humidity 5% to 40°C , on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
IP Leve (Front Panel) IP65
Safty FCC/VDE(Level A)
MBTF >50,000hrs
Packing info
Dimensions(WxHxD) 470x385x55mm
Packing Dimension 530x440x150mm
NET weight 7KG
Packing list 12v Power adapter x1, User manual x1,Warranty card x1, Packing list x1, Driver CD x1, Screws x1 bag, Touch pen x1, Clipx4
Ordering informations
IEC-619 IEC-619 Chassis, 19" TFT LCD, 19" touchscreen, VGA
