1920-2170MHz YAGI ANTENNAS

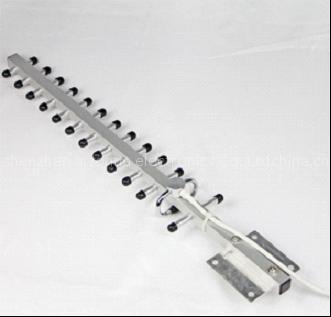

Product Name 3G Yagi Antenna(13 elements)Description ARY-1920-2170-13 Series Yagi antennas designed by ARRONNA for the 3G system at long distance communication system. They feature High Gain, Broad working bandwidth, good F/B Ratio etc.

The light structures make them easy to install.Electrical SpecificationsModel ARY-1920-2170-13Frequency Range–MHz 1920-2170Bandwidth-MHz 83Gain-dBi 13Horizontal BeARwidth -° 40Vertical BeARwidth -° 36F/B ratio-dB 16VSWR ≤1.5Input Impedance -Ω 50PolARization Vertical or horizontalMaximum Power -W 100Connector N Female or CustomizedMechanical SpecificationsDimensions-m 0.6Weight-kg 0.8Mounting Mast Diameter-mm Ф30-50
