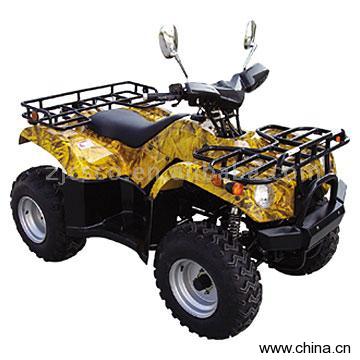

180cc EEC ATV (XW-ATV180) is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:XW-ATV180 Product Origin:China Brand Name:CSCO Price Terms:FOB, CIF Payment Terms:T/T Certification:EEC Description:Feature: 1) Body size (mm): 1,880 x 1,070 x 1,100 2) Axle span (mm): 1,150 3) Wheel span (mm): a) Fr: 735 b) Re: 810 4) Max. speed (km/h): 75 5) Fuel tank volume: 5.5L 6) Gasoline brand: 90# leadless gasoline 7) Brake device: a) Fr: disc brake b) Re: disc brake 8) Tire size: a) Fr: 23 x 7.00 - 10 b) Re: 22 x 10 - 10 9) Engine type: single cylinder, 4-stroke, air cooling 10) Transmission system: gear transmission, with reverse, four speed, automatic clutch11) Displacement: 175CC 12) Compression ratio: 9.2:1 13) Igniting way: CDI 14) Max. torque: 10.0N.m/5,500r/min15) Starting way: electric start 16) Rated power: 7kW/7,500r/min Outer packing: Steel cage with cartonCarton dimensions (mm): 1,925 x 1,130 x 860 N.W.: 200kg G.W.: 240kg Conveyance: Qty/40' FCL: 36pcs
