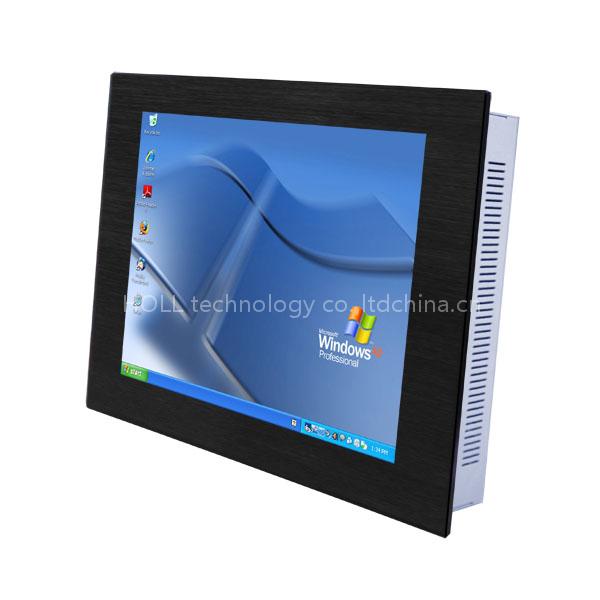

17 industrial panel PC IEC-617P

17" Industrial LCD Panel PC with Intel Atom N270 Processor,Wifi model & touchscreen are optional Ordering informations IEC-617P industrial pc,17" TFT LCD, 17" Touchscreen, IEC-815N2D Board, DDR2 1G Ram, 2.5" 160G SATA HDD, power adapter, 4x COM, 1xVGA, 1x LPT, 4xUSB, 1xGLAN, 1xAudio Packing info Dimensions(WxHxD) 450x364x79.7 mm Packing Dimension 530x440x150 mm NET weight 6 KG Exporting packing 12v Power adapter x1, User manual x1,Warranty card x1, Packing list x1, Driver CD x1, Screws x1 bag, Touch pen x1, Clipx4 Features 17" TFT LCD Panel support 1280x1024 pixels Intel Atom N270 1.6G,L2 512K CPU 300 cd/m2 brightness Material:Aluminium magnesium Alloy(Better than Aluminium) Resistive Touchscreen 1xPCI(CF,Wifi Optional) NEMA4/IP65 compliant front panel Meet standard VESA hole , support desktop stand / wall mount / swing arm mounting Specifications

System Motherboard IEC-815N2D Motherboard CPU Intel Atom N270 1.6G L2 512K RAM (Memory) 1G DDR2 Network 1 x Intel 82574L Gigabit Lan HDD (hard disk ) 2.5" HDD SATA160G Display Intel GMA950, Up to 224M display I/O Connector 3*RS232,1*RS232/422/485,1*VGA,1*LPT, 4*USB,1*GLAN,1*Audio Expansion 1xPCI(CF,Wifi Optional) Construction Aluminum magnesium Alloy Color Black Installation Install on desk,Hanging on the wall or VESA cantilever install Power connector 3 Pin connector Power Supply DC12V input LCD Panel Display type 17" TFT LCD Resolution 1280x1024 Luminance 300 cd/m2 Contrast Ratio 700:1 Touchscreen Type Resistive Touchscreen Controller Interface Internal USB ( RS-232 interface option) Light Transmission 81% or more Operating Force ≤250g Life Expectancy 10 Millions Environmental Specifications Oprerating Tempreture 0 °C to 60 °C Storage Humidity 5% to 40°C , on-condensing Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration Shock 10G peak acceleration (11 msec. duration) IP Leve (Front Panel) IP65 Safty FCC/VDE(Level A) MBTF >50,000 hrs
