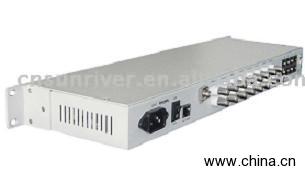

16ch Digital Video Optical Transceiver
Specifications
- Origin
- China (Mainland)
16ch Digital Video Optical Transceiver is a Fiber Optic Equipment product. Key specs — Origin: China (Mainland).
Product Description
Model No.:DVOP16 Product
Origin:China Brand
Name:Sunver
Price Terms:FOB
Payment Terms:T/T
Certification: Description:
Applications:High way and toll station surveillance Public security surveillance Surveillance and cable TV system Intelligent traffic monitoring system High quality video conference Broadcast and TV program transmission Long-distance multimedia teaching Industrial closed circuit television surveillance
Features:One multimode or single mode fiber Modularized and industrialized design ensuring reliability and flexibility Large capacity of gigabit optical fiber transmission allowing of easy upgrade10 digit coding and non-compression video transmission Large-scale proprietary IC core Auto PAL/NTSC/SECAM compatible Multi-services flexible configuration on the same platform Indicators for power supply, video, optic-link and data-loop Free from in-field adjustment Flexible and easy mount Protection against lightening strike and surge Transmission distance: 80km
Specifications:Video:Channel: 16Connector: BNCBandwidth: 8MHz Quantization: 10 bitsDG: 1% typicalDP: 1 typicalSNR:>67dB Audio:Audio input/output impedance: 600Ω (unbalanced/balanced)Digitization: 246 bits Bandwidth: 20Hz to 20k Hz Nonlinear distortion coefficient: ≥1 %S/N ratio:>80dBConnector: RJ45/RCAData Interface type: RS-232/485/422, Manchester, Biphase Operation mode: full-duplex/half-duplex Data rate: DC and SIM 384KbpsBER:
