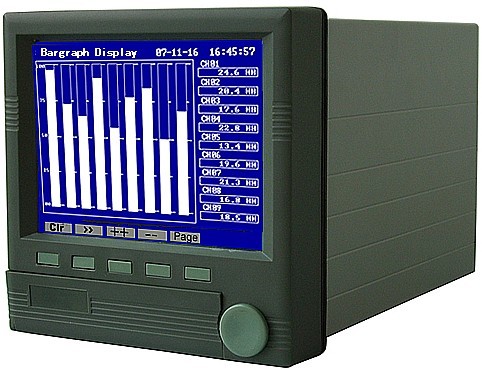

16 Channels Universal Data Logger

Detailed Product Description

KH300G is high quality color paperless recorder (144x144x180mm, up to 16 channels), used the advanced technology, to be designed high quality and performance, isolated, high accuracy, universal use, to be aimed to monitor, record, analysis the processes in various industry application.

Features Size: 144x144x180mm, 320x240Pixels, 5.6inch color LCD screen Universal input signal: T. C. RTD, mA DC, mV DC^. etc Photoelectrical isolation in input, power and output modular, with strong anti-interference ability.

High accuracy: +-(0.2%FS+1) digit 8MB memory built-in, for long terms data record Up to 16-points recording( option) Maximum 16 points relay output, (option) Could select 5VDC, 12VDC, 24VDC auxiliary power supply for sensors and transmitters. (option). Could select 4-20mA, 0-10mA, 0-5VDC or 1-5VDC as retransmission. Up to 16 channels(option).

Measuring data can be display in various types: Bar graph, curve, and digit.

The history data can be stored in USB memory, transferred to PC directly by USB flash drive with our data analysis software, plug and play, easy to operation. Also be printed by our data analysis software to output the data in excel or curve format

The user can access the data on the screen as well as on site from a remote place via RS485, RS232 serial interface. MODBUS-RTU communication protocol are available for configuration with MCGS and others professional software.

Directly connecting with mini printer, to print history or real time data in digital or curve format.

Specification Accuracy± 0.2%FS+1digital Power voltage: 85-240VAC Display320*240 DOT matrix 5.6 inch blue LCD display

Input types T. C K S E J T B RTD: PT100CU50CU100 Linear voltage0-5V1-5V m Linear current0-10mA4-20mA

Output types 16 channels relay output (Max) Print/communication port DC24V feed USB transfer

Record time: Record interval can be set by user, such as 1, 2, 3, 4, 5, 6s The sixteen- channel record interval is one minute and the record time is 180 days.

Pow-off protection time The setting parameters and history record can kept by FLASH MEMORY, which can be kept forever even when the power is off. The meter can still run accurately when the power is off with using hard clock in recorder.

Boundary dimension: 144*144*180mm Installation dimension: 138*138*180mm Environmental temperature 0-50oC Environmental humidity 0-85%RH
