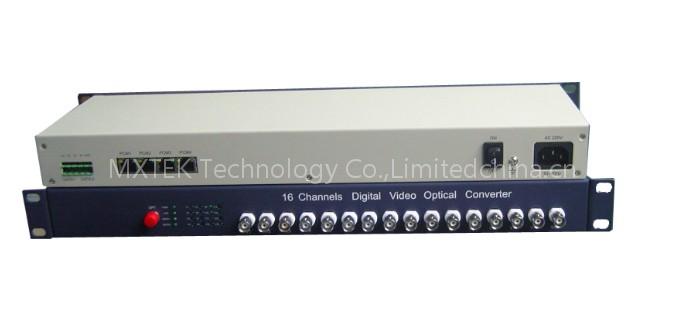

16V1D Video Optical Multiplexer

16V1D Video Optical Multiplexer
Item No.:OV-16V1D
Configuration
-16 channels video connectors
-1 reverse data connector
-Lighterning protection
-FC connector(SC/ST optical)
-OEM available

Description

Our Video Optical Multiplexer is a full-digital video transmission device. We self-developed by advanced technology of high speed fiber multiplexing and digital video processing. We adopt design of ultra-large-scale integrate circuit to multiplex signals of video, audio, data, Ethernet and switching value, and implement the transmission of real-time synchronization, non-distortion, non-compression and high quality video effect in a fiber. This series of product is based on software development of high technical content and we owns independent intellectual property rights, also we adopt application-specific integrated on circuit and surface mount technology, it’s one of the most advanced transmission products which using long distance and high resolution to realize real-time video monitoring.

Features:

1.Parallel transmission signal of 1~32 channels video,audio,data and network at the same time

application-specific integrated circuit as the core which we have independent intellectual property rights, full digital fiber transmission platform, multi-service and flexible allocation

digitization and non-compression video signal, real time synchronization and high quality transmission

4.Video AGC provide more flexibility and steady picture, full-automatic compatible with PAL,

NTSC,SECAM video format

5.Supper function of lightening-protection, all interfaces adding three-level protective design

cross interference by analog FM(frequency modulation),PM(Phase Modulation) and

AM(amplitude modulation) optical multiplexer

7.Super optical dynamic range, useing without any adjustment

8.Strict on raw material choose and QC to ensure high quality and reliability products

Technology Parameter

Fiber Interface

Connector Type: FC/SC/ST optional

Working Wavelength: Multi-mode 850nm/1310nm, single mode 1310nm/1550nm

Transmission Distance: Multi-Mode 0-2Km, Single Mode 0-120Km (Long distance can be adopted DBF Laser)

Video Interface

Connector: BNC (Q9)

Video Format: PAL/SECAM/NTSC

Input/Output Level: 1Vpp

Input/Output Impendence: 75Ω

Video Bandwidth: 8MHz

Differential Gain:(10%-90%APL)DG<1% (typical value)

Differential Phase:(10%-90%APL)DP<0.6% (typical value)

WSNR(Weighted Signal-to-Noise Ratio: SN≥67db

Audio Interface

Connector: Standard industry connection terminal

Input/Output Impendence: 600Ω

Audio bandwidth: 20Hz-20 KHz

WSNR: SN≥85db

Date Interface

Connector: Standard industry connection terminal

Data Type: RS485/RS422/RS232/switching value

Support Rate: 0-500Kbit/S

Error Rate: <10E-9

Other Parameters

Input voltage: AC100V~220V/50~60Hz

DC-36~72V

Whole Power: <5W

Working Temperature: -40°C~ +70°C

Relative Humidity: <95% (non-condensing
