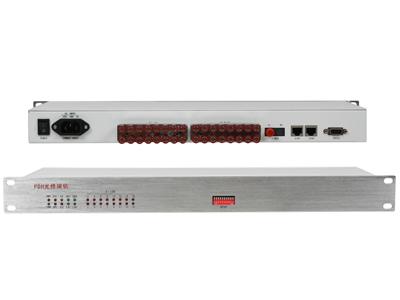

16E1 port PDH optical multiplexer
Specifications
- Brand
- MXTEK
- Origin
- Guangzhou
- Price Term
- FOB
16E1 port PDH optical multiplexer is a Fiber Optic Equipment product. Key specs — Brand: MXTEK; Origin: Guangzhou; Price Term: FOB.
Product Description
Product Model: OE-16A
Description:
Our OE-16A 16E1 PDH Optical Multiplexer is developed by ourselves as the increasing fastly in present market from private network customers.A machine largest can supply 16 pieces E1 connector .It speacial used in communication get little volume,high-reliable customers.
This equipment as a high performance mature technology inner softwear is for Modulization circuit used the single board frame,parts of hardwear own the FPGA of proprietary intellectual property rights,code,digital smooth lock as a that various of Indicators can superior to each advice of it is wildly apply in network systems of Telecom ,Mobile,Unicom, electric force,railway,Army,bank etc for professional communicate internet.
Products Features:
with the our independent developed special IC as the center, Low power consumption,high reliable | ||
industrial-level, Modularize design,SMT surface place craftwork | ||
suitable for the run standard of carrier class ,50,000 hours lifespan | ||
independently for the un-used E1 branch circuit happened the false warning. | ||
control connector loopback from far end equipment of E1 | ||
Have the conditon of the warning | ||
single-fiber, dual-fiber is optional ,save the source of fiber | ||
flexible the way of supplying power (DC-48V Or AC 220V) | ||
the power and other parameter indicate LED can watch system condition,supply the warning of beep. | ||
super fiber dynamic adjust by itself when used. | ||
strictly materials choose and quality control make sure high quality and reliable. Technology parameter | ||
Fiber port | ||
Port | FC(SC,ST etc) | |
Working wavelength | 1310nm/1550nm | |
Transmitting power | >-10dBm | |
Receiving Sensitivity | >-35dBm | |
Minimumn link loss | 30dB | |
E1 port | ||
Connector type | 75Ω/BNC(Q9) | |
Code pattern | HDB3 | |
Bit rate | 2.048Mbit/s±50ppm | |
Jitter | ITU-T G.823 | |
Physics parameter | ||
Power input voltage | AC176V~264V / 50Hz DC-36~72V | |
Power Consumption | < 10W | |
Working temperature | 0-60ºC | |
Humidity | < 95% | |
Dimension | 19 inch1Ustandard Cabinet:L*W*H= 480 * 170 * 44 (mm) | |
